Product Description

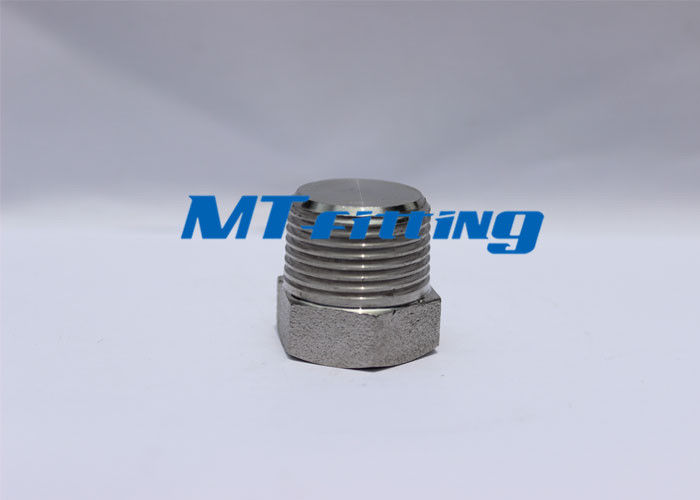

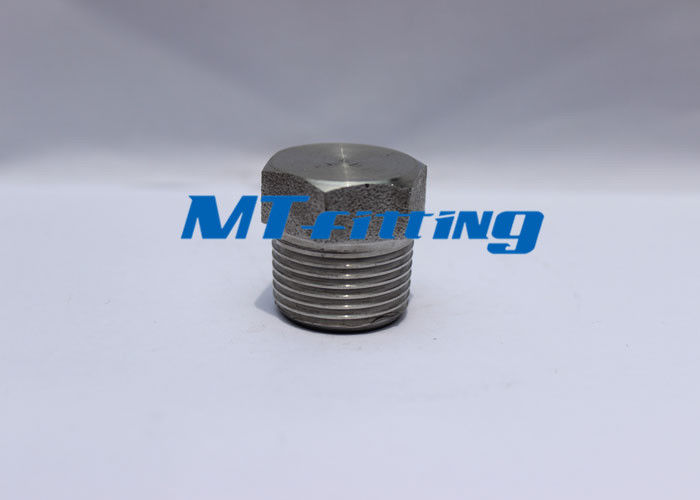

High Pressure 3000LBS F11 / F91 Stainless Steel Hex Head Plug Threaded End
| Material Grade |
F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, etc. |
| Size |
NPS 1 / 8 inch- 4 inch |
| Standard |
ASME B16.11 |
| Process Method |
Forged / Casting |
TYPE:
A:Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
Socket-welded, Threaded ( NPT or PT type).
B: Butt-welding
SIZE: NPS 1 / 8 inch- 4 inch
RATING:
Pressure: Threaded end: 2000/3000/6000 LBS
Socket-welded end: 3000/6000/9000 LBS
Butt welded end: Sch40/Sch80/Sch160/XXS
SPECIFICATIONS:
A. DIM. SPEC.:
GB / T 7306, 12716, 14383, 14626
ASME B16.11-2001 (Revision of ASME SB16.11-1996)
MSS-SP-79,83,95,97 and bothwell spec.
JS B0203, B2316
B. MATERAL SPEC:
ASTM A105, A305LF2, A106, A312, A234, A403
GB / T 699 20MM
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)
Size of raw material: Dia. 19-85mm round bar.
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
1 . Commodity: Elbow, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, etc.
2 . Process Method : Forged
3 . Materials : Stainless Steel ,Carbon steel, etc
4 . Standards : ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403,etc.
5 . Size Range : NPS 1 / 8 inch- 4 inch
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .
ASTM A182 / A182M Standard Chemical Composition :
| Elements |
304L(wt%) / F304L / S30403 |
304(wt%) / F340 / S30400 |
316L (wt%) / F316L /S31603 |
316 (wt%) / F316 / S31600 |
310 (wt%) / F310 / S31000 |
| (C) Carbon, max |
0.03 |
0.08 |
0.03 |
0.08 |
0.25 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 13.0 |
8.0 - 11.0 |
10.0 - 15.0 |
10.0 - 14.0 |
19.0 - 22.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
24.0 - 26.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
N/A |
| (Fe) Iron |
N/A |
N/A |
N/A |
N/A |
N/A |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A |
N/A |
