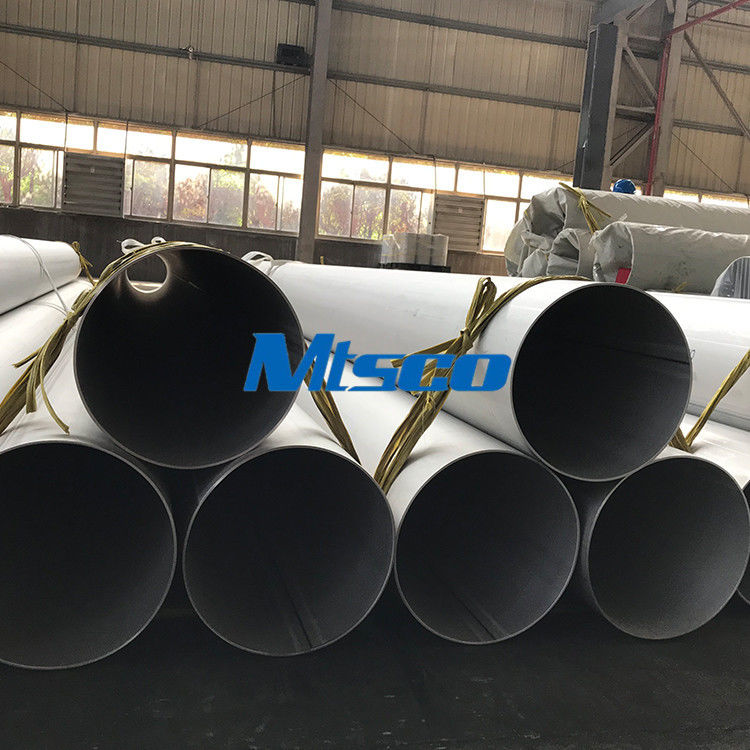

12 Inch Sch80 Annealed And Pickled Stainless Steel Welded Pipe
12 Inch Sch80 Annealed And Pickled Stainless Steel Welded Pipe 12 Inch Sch80 Annealed And Pickled Stainless Steel Welded Pipe
Contact Now

12 Inch Sch80 Annealed And Pickled Stainless Steel Welded Pipe

Minimum Order Quantity : negotiable Price : 2400-12000USD/TON

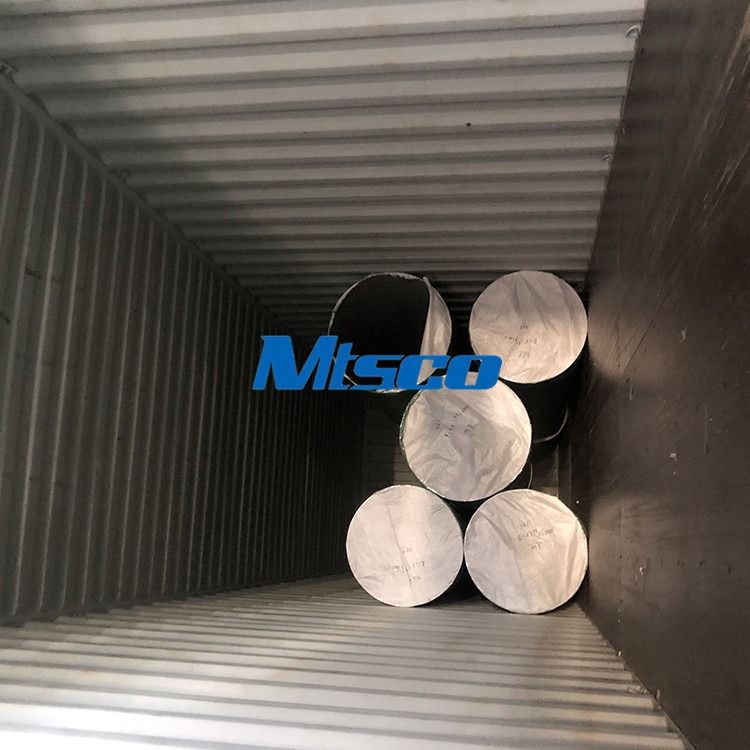

Packaging Details : Plywood Case / Bundles Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP61

Detail Information
Material: 300 Series Stainless Steel Type: Welded
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
Surface: Pickling & Annealing Process: ERW , EFW Etc
High Light:

Sch80 Stainless Steel Welded Pipe

,

ASTM A358 Stainless Steel Welded Pipe

,

Annealed And Pickled ss welded tube

Product Description

ASTM A358 / ASME SA358 12inch Sch80 Pickling & Annealing Welded Pipe


1. Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc
2. Outer Diameter: 10.3mm-1219mm
Wall Thickness : 1.24mm-59.54mm
3. Length: Normally fixed length 6m , can as per customer’s requirement
4. Standard: ASTM A312 ; ASTM A358 ; ASTM A789 ; ASTM A790 etc .
5. Process Method: ERW , EFW etc


American Standard TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc
European Standard 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc
German Standard X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc


  12 Inch Sch80 Annealed And Pickled Stainless Steel Welded Pipe 0



Test :

1 . X-ray , Size test , Length test
2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc



Material  Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 　 　 10C -1.10 ^



MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .


MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .
