Product Description

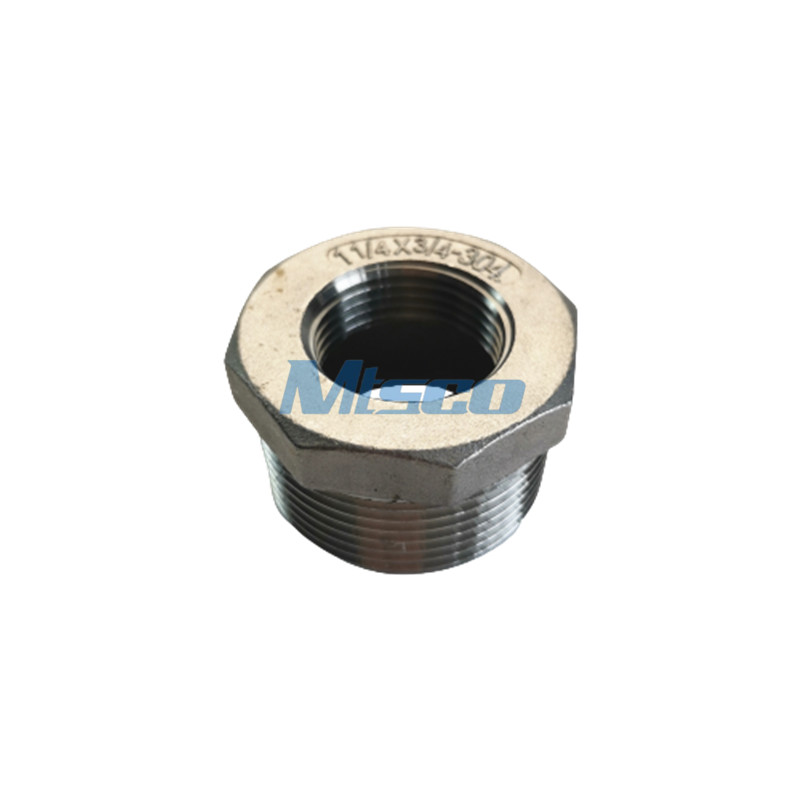

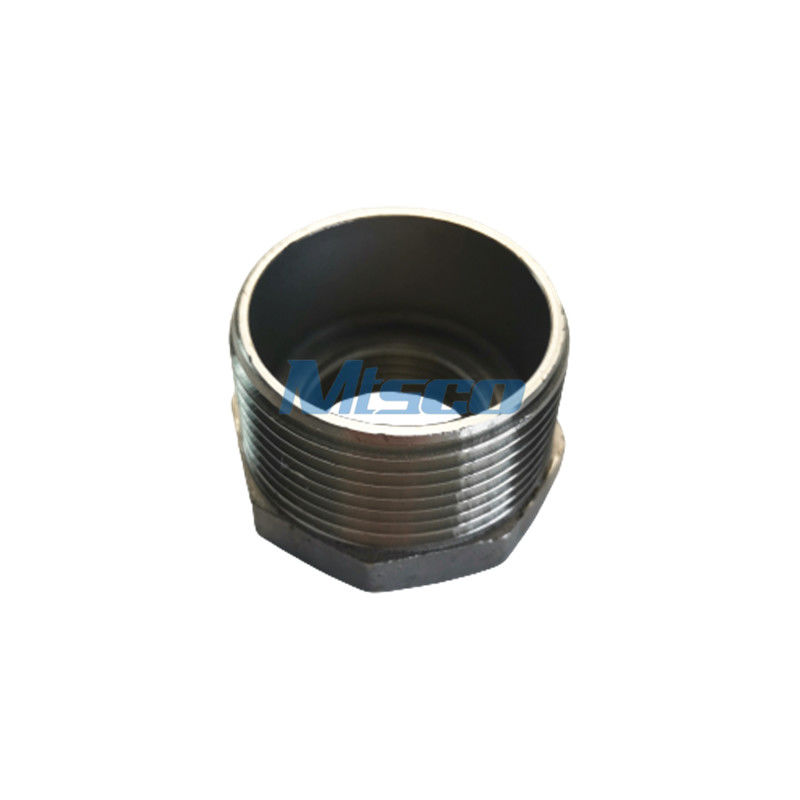

Stainless steel CF8/CF8M Hexagonal Bushing NPT 150# for connection
What is the difference between casting and forging?
Casting
The process of melting the metal into a liquid meeting certain requirements and pouring it into the mold, then cooling, solidification and cleaning to obtain a casting (part or blank) with predetermined shape, size and performance.
Forging
The forging machine is used to exert pressure on the metal blank to produce plastic deformation, so as to obtain the forging with certain mechanical properties, shape and size.
Hexagonal Bushing:
Hexagonal bushings are used to reduce the size of female threads from a larger to a smaller diameter. Hex Bushings are threaded fittings that have male threads on the outside and female threads on the inside with a hex head used to tighten the fitting into the threaded opening.
| Product Name |
Casting Fitting Hexagonal Bushing |
| Material |
304/316 stainless steel |
|
Standard/
Dimension Standard
|
ASTM A351/A351M
ISO4144,MSS-SP-114
|
| Size: |
1/8”-8” |
| Class |
150# |
| Connection |
Male Female Thread Connection |
| Shape |
Equal/ Reducing |
| Model |
Elbow,Tees,Socket, Hex nipple, Square plug, Bushing, Union, Hose nipple, Reducing socket, Cross, Street elbow, Round/Hex cap, Reducing elbow, Reducing tee, Half nipple, Reducing hex nipple, Coupling, Reducing Coupling, Barrel Nipple..... |
| Thread: |
NPT, NPSC, BSPP, BSPT etc |
Hexagonal Bushing Chemical Composition:
| Element |
Type 304 (%) |
| Carbon |
0.08 max. |
| Manganese |
2.00 max. |
| Phosphorus |
0.045 max. |
| Sulfur |
0.03 max. |
| Silicon |
0.75 max. |
| Chromium |
18.00-20.00 |
| Nickel |
8.00-10.50 |
| Nitrogen |
0.10 max. |
| Iron |
Balance |
Hexagonal Bushing Test:
NDT ( Ultrasonic test, Eddy Current test )
Mechanical Test ( Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test )
Metal Test ( Metallographic Analysis, Impact Test - High/low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving stainless steel customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
For more information, you are welcome to contact us by email. Thank you for your interest.
