Product Description

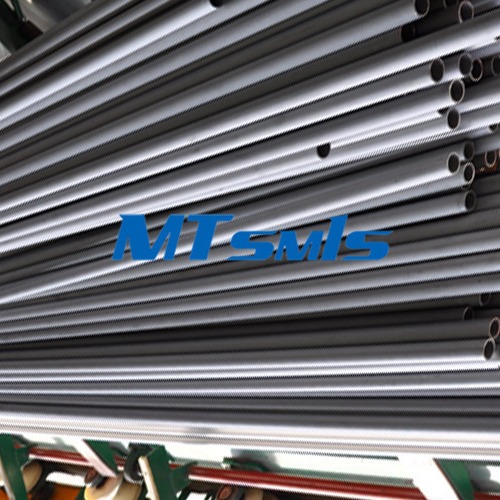

ASTM A213/269 Stainless Steel Tubing For Heat Exchanger With A&P Surface For Pressure Vessel
Grade: TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H
Standard: ASTM A213 , ASTM A 269 , ASTM A789 , etc
Size: Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm
WT : 1.2-2.77mm
Length: According to customer needs up to 20m
Heat Exchanger Tube Production Process :

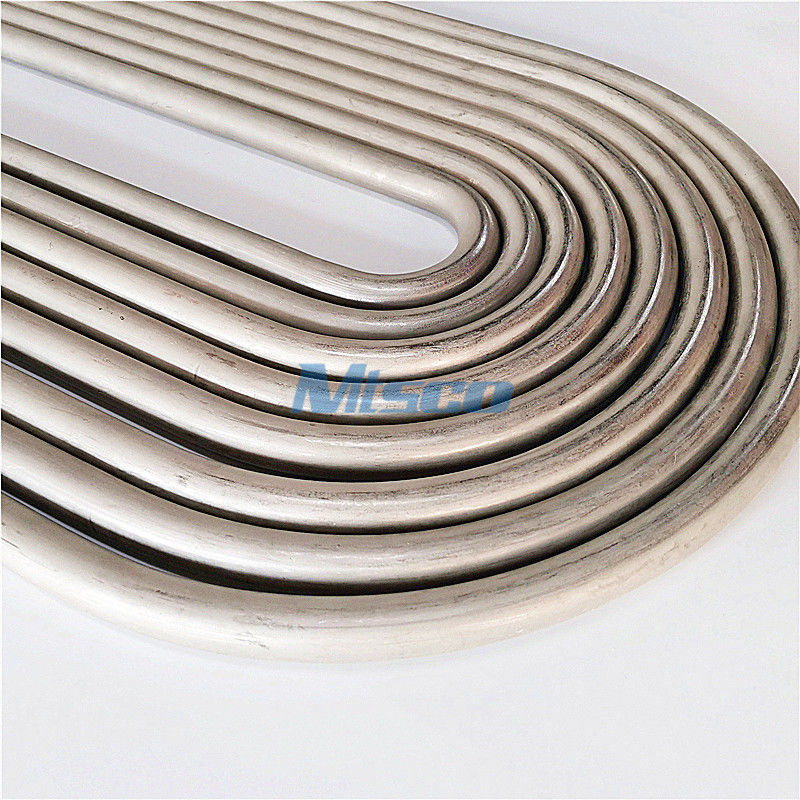

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage
ASTM A269 Heat Exchanger Tube Material Chemical Composition :
| Elements |
304L(wt%) S30403 |
304(wt%) S30400 |
316L (wt%) S31603 |
316 (wt%) S31600 |
| (C) Carbon, max |
0.035 |
0.08 |
0.035 |
0.08 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 12.0 |
8.0 - 11.0 |
10.0 - 14.0 |
10.0 - 14.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
| (Fe) Iron |
Bal. |
Bal. |
Bal. |
Bal. |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A |
MTSCO is a leading manufacturer who is specialized in seamless tubes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
About MTSCO:
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
