Product Description

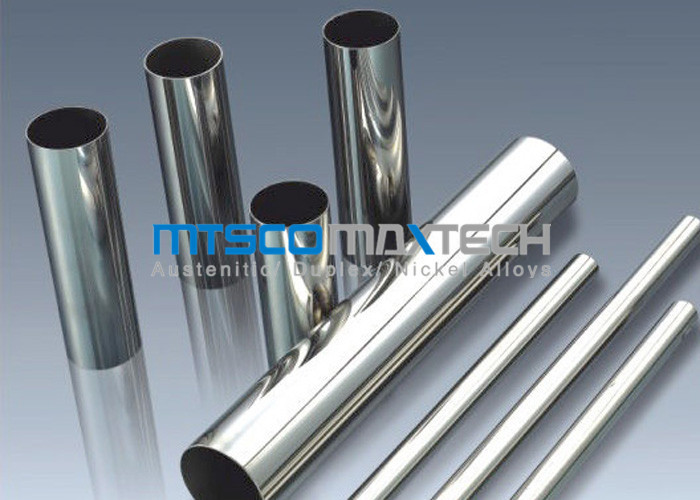

TP304 , TP316 Stainless Steel Sanitary Tubing , Mesh Belt Furnace Annealing
Bright annealed sanitary tube has very clean inner surface . MTSCO has our own high technology , when tubes have been produced they already have cleaned inner surface , even though we haven’t cleaned them . Of cause , we’ll do clean later . So when we finished clean process , the tubes are totally clean enough !
Application :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
Specification :
|
Size
|
OD : 4.76 - 25.4mm
|
|
WT : 0.71 - 2.11mm
|
|
Length : >1000Meters
|
|
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
|
|
6 * 1mm / 6 * 1.5mm
|
|
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
|
|
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
|
|
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
|
|
10 * 1mm / 10 * 1.5mm
|
|
12 * 1mm / 12 * 1.5mm / 12 * 2mm
|
|
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
|
|
14 * 1mm / 14 * 1.5mm / 14 * 2mm
|
|
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
|
|
16 * 1mm / 16 * 1.5mm / 16 * 2mm
|
|
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
|
|
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm
|
Chemical Composition : ASTM A213 / A213M Standard
| Elements |
304L(wt%) S30403 |
304(wt%) S30400 |
316L (wt%) S31603 |
316 (wt%) S31600 |
| (C) Carbon, max |
0.035 |
0.08 |
0.035 |
0.08 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 12.0 |
8.0 - 11.0 |
10.0 - 14.0 |
10.0 - 14.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
| (Fe) Iron |
Bal. |
Bal. |
Bal. |
Bal. |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A |
MTSCO tubes can be used in General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear ) , fuild & gas & oil transport industries , pressure and heat transmission industries , construction and ornament industries , boiler and heat exchangers industries , decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) etc .
