TP310S Stainless Steel Hydraulic Tubing , Bright Annealed Tubing

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHT10

Detail Information

Material: TP310S , 300 Series Stainless Steel Surface: Polished 400 # 320 # Etc
Type: Seamless NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Technology: Cold Drawn / Cold Rolled
High Light:

hydraulic tube

,

hydraulic pipe

Product Description

TP310S Stainless Steel Hydraulic Tubing , Bright Annealed Tubing





ASTM A213 / A213M Standard Chemical Composition :


Elements TP310S(wt%) S31008
(C) Carbon, max : 0.08
(Mn) Manganese, max : 2
(P) Phosphorus, max : 0.045
(S) Sulfur, max : 0.03
(Si) Silicon, max : 1
(Ni) Nickel : 19.0 - 22.0
(Cr) Chromium : 24.0 - 26.0
(Mo) Molybdenum :
(Fe) Iron :
(Cu) Copper :
(N) Nitrogen :



Applications :

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry


Specification :










Size

OD : 3.18 - 101.6mm

WT : 0.5- 20mm

Length : >1000Meters

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm

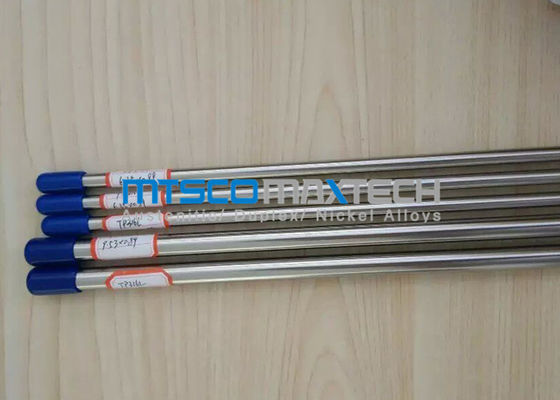

TP310S Stainless Steel Hydraulic Tubing , Bright Annealed Tubing 0



MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
