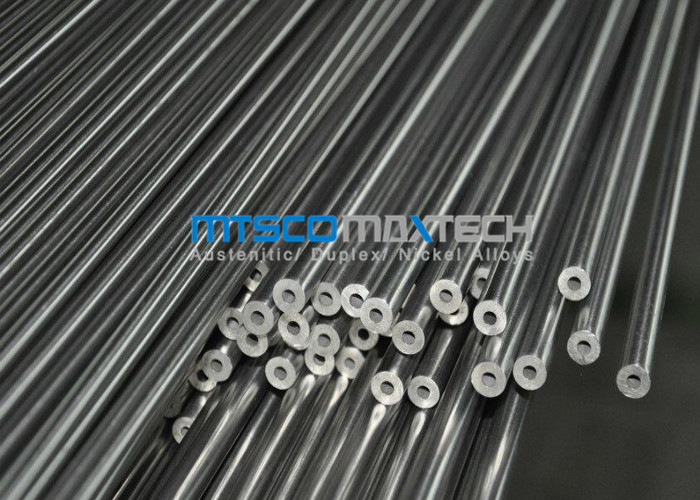

ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829
ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829
ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829
Contact Now

ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829

Minimum Order Quantity : negotiable Price : 25000-100000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCONAT10

Detail Information
Material: Alloy600 , Alloy601 , Alloy625 Etc Type: Seamless
Technology: Cold Drawn / Cold Rolled Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
High Light:

nickel alloy tubing

,

Alloy Steel Tube

Product Description

ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829




ANSI B36.19 Nickel Alloy 600 , 601 Tube ASTM B829 / ASME SB829 0






ANSI B36.19 ASTM B829 / ASME SB829 Specifications :



NPS Designator Outside Diameter Nominal Wall Thickness
in. mm Schedule 5S Schedule 10S Schedule 4S Schedule 80S
　 　 　 in. mm in. mm in. mm in. mm
 1 / 8 0.405 10.29 … … 0.049 1.24 0.068 1.73 0.095 2.41
 1 / 4 0.54 13.72 … … 0.065 1.65 0.088 2.24 0.119 3.02
 3 / 8 0.675 17.15 … … 0.065 1.65 0.091 2.31 0.126 3.2
 1 / 2 0.84 21.34 0.065 1.65 0.083 2.11 0.109 2.77 0.147 3.73
 3 / 4 1.05 26.67 0.065 1.65 0.083 2.11 0.113 2.87 0.154 3.91
1 1.315 33.4 0.065 1.65 0.109 2.77 0.133 3.38 0.179 4.55
1 1 / 4 1.66 42.16 0.065 1.65 0.109 2.77 0.14 3.56 0.191 4.85
1 1 / 2 1.9 48.26 0.065 1.65 0.109 2.77 0.145 3.68 0.2 5.08
2 2.375 60.33 0.065 1.65 0.109 2.77 0.154 3.91 0.218 5.54
2 1 / 2 2.875 73.03 0.083 2.11 0.12 3.05 0.203 5.16 0.276 7.01
3 3.5 88.9 0.083 2.11 0.12 3.05 0.216 5.49 0.3 7.62
3 1 / 2 4 101.6 0.083 2.11 0.12 3.05 0.226 5.74 0.318 8.08
4 4.5 114.3 0.083 2.11 0.12 3.05 0.237 6.02 0.337 8.56
5 5.563 141.3 0.109 2.77 0.134 3.4 0.258 6.55 0.375 9.52
6 6.625 168.28 0.109 2.77 0.134 3.4 0.28 7.11 0.432 10.97
8 8.625 219.08 0.109 2.77 0.148 3.76 0.322 8.18 0.5 12.7
10 10.75 273.05 0.134 3.4 0.165 4.19 0.365 9.27 0.5 12.7
12 12.75 323.85 0.156 3.96 0.18 4.57 0.375 9.52 0.5 12.7
14 14 355.6 0.156 3.96 0.188 4.78 … … … …
16 16 406.4 0.165 4.19 0.188 4.78 … … … …
18 18 457.2 0.165 4.19 0.188 4.78 … … … …
20 20 508 0.188 4.78 0.218 5.54 … … … …
22 22 558.8 0.188 4.78 0.218 5.54 … … … …
24 24 609.6 0.218 5.54 0.25 6.35 … … … …
30 30 762 0.25 6.35 0.312 7.92 … … … …



Test :



1 . NTD(Ultrasonic test, Eddy Current test)

2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

3 . Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

4 . Chemical Analysis(Photoelectric Emission Spectroscopic)



 Application :



1 . Heat exchanger

2 . Condenser

3 . Shipping industry

4 . Precision machinery

5 . Mechanical structure industry

6 . Thermocouple & Cable etc





MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly, nickel alloy tubes which produced by us always have correct OD and WT tolerance . Nickel alloy tubes have a very important position in thermocouple & cable industry .

Main market or alloy tube include Europe , Middle East , Southeast Asia , South America , etc . MTSCO has bright annealing alloy tube and pickling alloy tube . Compared these two kinds of tubes , bright annealed alloy tubes are more popular in the market . Because it has bright out and inner surface .
