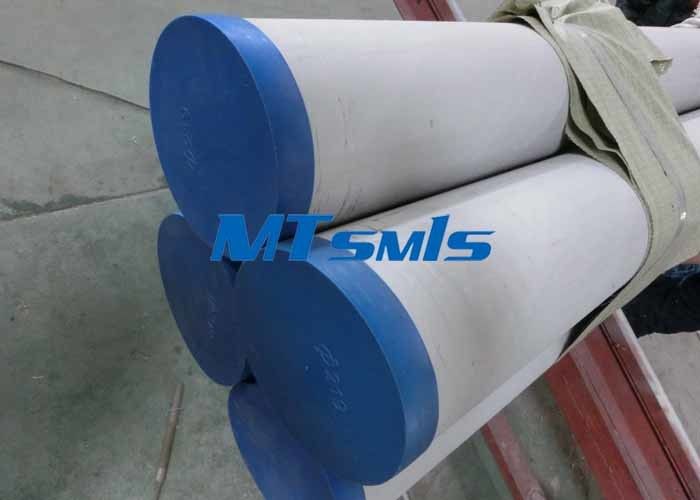

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG
Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG
Contact Now

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP22

Detail Information
Material: 300 Series Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%
High Light:

seamless stainless pipe

,

seamless stainless tube

Product Description

EN10216-5 TP317 / 347H Stainless Steel Pipe , 14BWG, 18BWG, 20BWG




Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc





Birmingham Wire Gauge BWG
　 Wall Thickness 　 Wall Thickness
BWG IN MM BWG IN MM
- - - 19 0.042 1.07
- - - 20 0.035 0.89
14 0.083 2.11 - - -
15 0.072 1.83 - - -
16 0.065 1.65 - - -
17 0.058 1.47 - - -
18 0.049 1.24 - - 　-





Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG 0



  MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
