DN150 TP309S / 310S stainless steel flue pipe seamless Big Size
DN150 TP309S / 310S stainless steel flue pipe seamless Big Size DN150 TP309S / 310S stainless steel flue pipe seamless Big Size DN150 TP309S / 310S stainless steel flue pipe seamless Big Size DN150 TP309S / 310S stainless steel flue pipe seamless Big Size
Contact Now

DN150 TP309S / 310S stainless steel flue pipe seamless Big Size

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP39

Detail Information
Material: Stainless Steel TP309S / 310S，TP304 TP304L TP316 TP316L Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%
High Light:

seamless stainless pipe

,

seamless stainless tube

Product Description

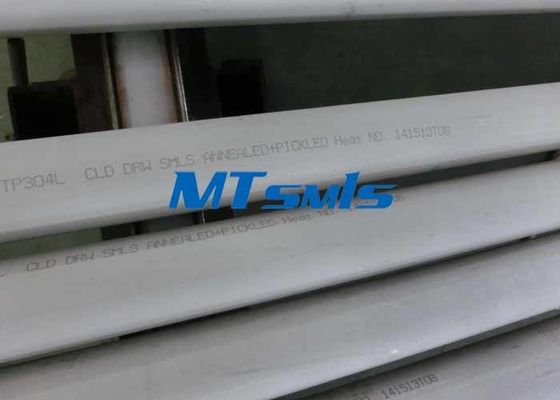

DN150 TP309S / 310S stainless steel flue pipe seamless Big Size







Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40



Chemical Composition :



Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 　 　 10C -1.10 ^





MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .



DN150 TP309S / 310S stainless steel flue pipe seamless Big Size 0





Application



a) For fluid & gas transport

b) Structure & machining etc



Advantages



a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc
