ASME SA815 F304 304L Pipe Fitting Flat Face Blind Flange ASTM A815
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 6000-17000USD/TON |
|---|---|---|---|

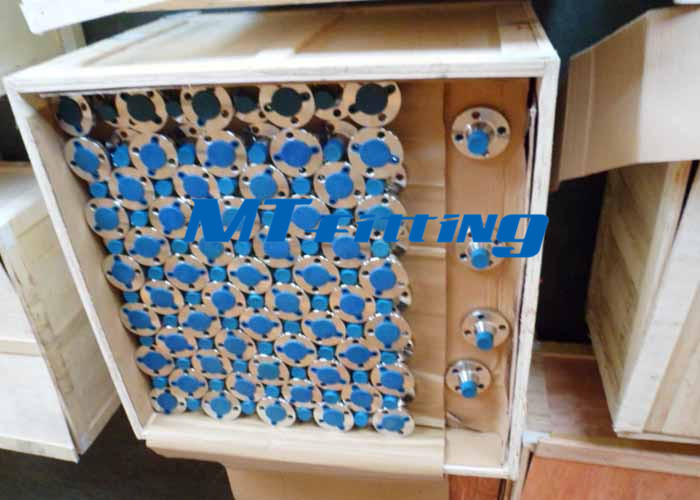

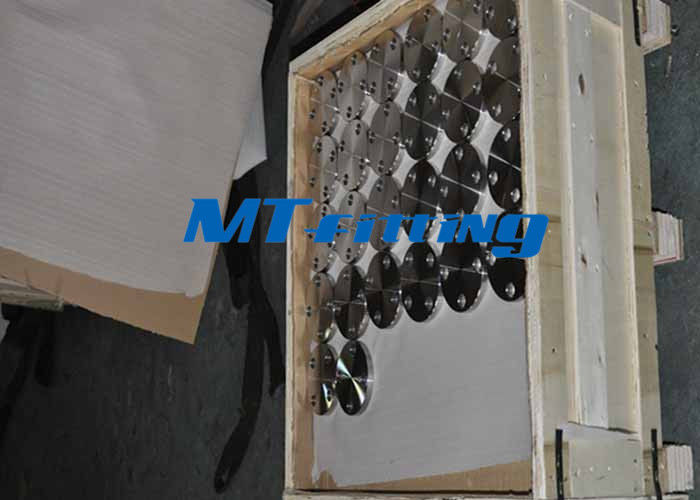

| Packaging Details : | Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOFPF56 |
|
Detail Information |
|||
| Material: | 304/304l/316/316l/309s/310s/321/321h | Size: | Class150-2500 |
|---|---|---|---|
| Package: | Plywood Case | PMI: | 100% |
| Standard: | ASME / ANSI B16.5/ ASTM A815 | ||
| High Light: | Stainless Steel Pipe Fitting,Stainless Steel Flange |
||
Product Description

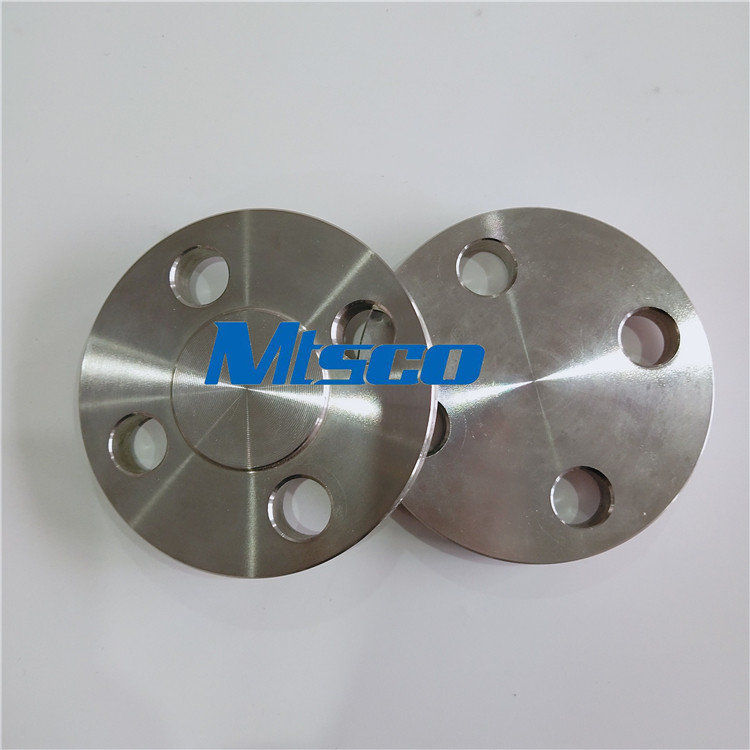

ASTM A182 F321 / 321H CL300 Stainless Steel Forged Blind Flange
| 1 . Commodity : Welding Neck , Blind , Slip On , Lap Joint , Socket Weld , Threaded , Spectacle Blind , etc |
| 2 . Surfacing : RF , FF , RTJ |
| 3 . Materials : Stainless Steel , Duplex Steel , etc |
| 4 . Standards : ANSI B16.5 , ANSI B 16.47 |
| 5 . Tolerances : according to the specification or customer’s request and drawings |
| 6 . Applications : Pipe connection , Piping project construction etc |
|
7 . Pressure class : 150 - 2500lbs; class 150-class 2500 |
1. Material Grade: WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321 etc
2. Size: 1/2" to 48" Sch 5S to XXS
3. Standard:ASTM A815 etc .
4. Process Method: Forged / Casting
ASTM A182 / A182M Standard Chemical Composition :
| Elements | 304L(wt%) / F304L / S30403 | 304(wt%) / F340 / S30400 | 316L (wt%) / F316L /S31603 | 316 (wt%) / F316 / S31600 | 310 (wt%) / F310 / S31000 |
| (C) Carbon, max | 0.03 | 0.08 | 0.03 | 0.08 | 0.25 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 13.0 | 8.0 - 11.0 | 10.0 - 15.0 | 10.0 - 14.0 | 19.0 - 22.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 | 24.0 - 26.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 | N/A |
| (Fe) Iron | N/A | N/A | N/A | N/A | N/A |
| (Cu) Copper | N/A | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A | N/A |
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have pipe fittings and flanges too . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
