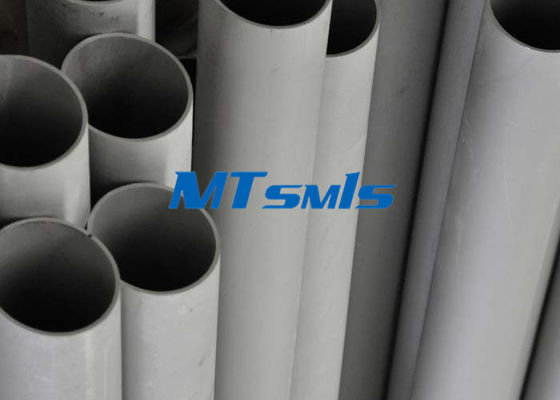

16 Inch UNS S31803 F51 Seamless Duplex Pipe For Fluid Transportion

Minimum Order Quantity : negotiable Price : 5000-9000USD/TON

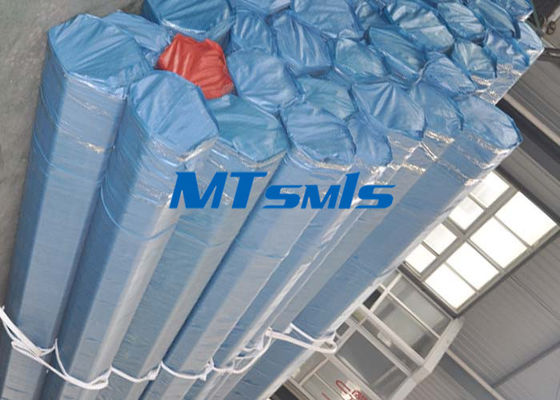

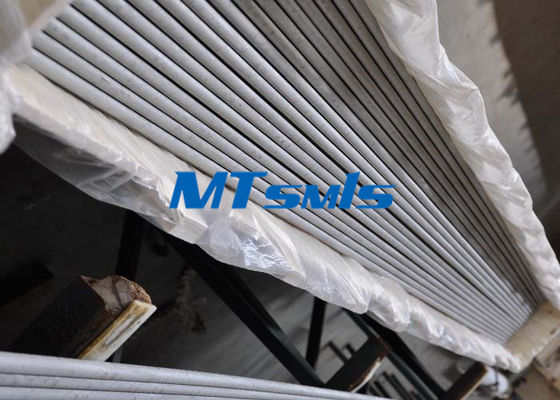

Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODSP34

Detail Information

Material: 1.4410 / S32750 / 2507 / 1.4462 / S31803 / 2205 / Etc Type: Seamless

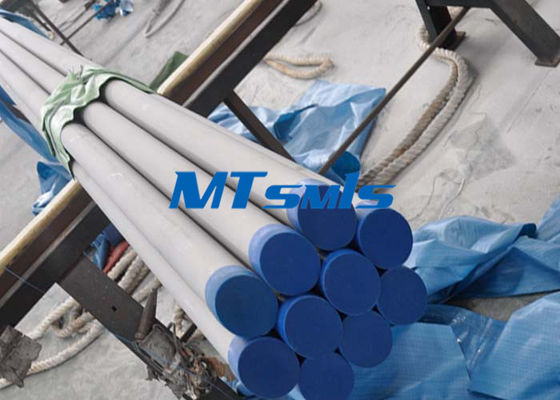

Ends: PE / BE Standard: ASTM A790 / SA790 ; ASTM A789 / SA789 ; ASTM A312 Etc
NDT: Eddy Current Or Hydraulic Test Delivery Condition: Soft / Hard
High Light:

Duplex Stainless Steel Pipe

,

Seamless Duplex Pipe

Product Description

16 Inch UNS S31803 F51 Seamless Duplex Pipe For Fluid Transportion





UNS Designation C Si Mn P S Cr Ni Mo N Cu
 max max max max max
S31803 ( F51 ) 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 ( F60 ) 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 ( F53 ) 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 ( F55 ) 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00



  Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series

stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .



Material Grade  S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc
Outer Diameter

10.3mm - 1219mm

Wall Thickness

1.24mm - 54.59mm

Length as per customer’s requirement
Standard

ASTM A789 ; ASTM A790 ; EN 10216-5ect .



16 Inch UNS S31803 F51 Seamless Duplex Pipe For Fluid Transportion 0



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH10 SCH20 SCH30 STD SCH40 SCH60 SCH80 XS
300 12 323.9 3.96 4.57 - 6.35 8.38 9.53 10.31 14.27 17.48 12.7
350 14 355.6 3.96 4.78 6.35 7.92 9.53 9.53 11.13 15.09 19.05 12.7
400 16 406.4 4.19 4.78 6.35 7.92 9.53 9.53 12.7 16.66 21.44 12.7
450 18 457.2 4.19 4.78 6.35 7.92 11.13 9.53 14.27 19.05 23.83 12.7
500 20 508 4.78 5.54 6.35 9.53 12.7 9.53 15.09 20.62 26.19 12.7
550 22 559 4.78 5.54 6.35 9.53 12.7 9.53 - 22.23 28.58 12.7
600 24 610 5.54 6.35 6.35 9.53 14.27 9.53 17.48 24.61 30.96 12.7
650 26 660 - - 7.92 12.7 - 9.53 - - - 12.7
700 28 711 - - 7.92 12.7 15.88 9.53 - - - 12.7
750 30 762 6.35 7.92 7.92 12.7 15.88 9.53 - - - 12.7
800 32 813 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
850 34 864 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
900 36 914 - - 7.92 12.7 15.88 9.53 19.05 - - 12.7
950 38 965 - - - - - 9.53 - - - 12.7
1000 40 1016 - - - - - 9.53 - - - 12.7
1050 42 1067 - - - - - 9.53 - - - 12.7
1100 44 1118 - - - - - 9.53 - - - 12.7
1150 46 1168 - - - - - 9.53 - - - 12.7
1200 48 1219 - - - - - 9.53 - - - 12.7
