Cold Drawn Stainless Steel Seamless Pipe Big Diameter , TP316L / 1.4404 100mm X 10mm

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOSSSP03

Detail Information

Material: TP316L / 1.4404 Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End
Caps: With Plastic Caps At Both Ends Inspection: 100%
High Light:

seamless stainless pipe

,

seamless stainless tube

Product Description

Cold Drawn Stainless Steel Seamless Pipe Big Diameter , TP316L / 1.4404 100mm X 10mm







Material Grade :



1 . American Standard : TP304 ,TP304L , TP304H , TP304N , TP310S ,TP316 ,TP316L ,TP316Ti , TP316H , TP317 , TP317L , TP321 , TP321H , TP347 , TP347H , 904 Etc



2 . Europen Standard : 1.4301 , 1.4307 , 1.4948 , 1.4541 , 1.4878 , 1.4550 , 1.4401 , 1.4404 , 1.4571 , 1.4438 , 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 Etc



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH10 SCH20 SCH30 STD SCH40 SCH60 SCH80 XS
300 12    323.9 3.96 4.57 - 6.35 8.38 9.53 10.31 14.27 17.48 12.7
350 14    355.6 3.96 4.78 6.35 7.92 9.53 9.53 11.13 15.09 19.05 12.7
400 16    406.4 4.19 4.78 6.35 7.92 9.53 9.53 12.7 16.66 21.44 12.7
450 18    457.2 4.19 4.78 6.35 7.92 11.13 9.53 14.27 19.05 23.83 12.7
500 20    508 4.78 5.54 6.35 9.53 12.7 9.53 15.09 20.62 26.19 12.7
550 22    559 4.78 5.54 6.35 9.53 12.7 9.53 - 22.23 28.58 12.7
600 24    610 5.54 6.35 6.35 9.53 14.27 9.53 17.48 24.61 30.96 12.7
650 26    660 - - 7.92 12.7 - 9.53 - - - 12.7
700 28    711 - - 7.92 12.7 15.88 9.53 - - - 12.7
750 30    762 6.35 7.92 7.92 12.7 15.88 9.53 - - - 12.7
800 32    813 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
850 34    864 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
900 36    914 - - 7.92 12.7 15.88 9.53 19.05 - - 12.7
950 38    965 - - - - - 9.53 - - - 12.7
1000 40    1016 - - - - - 9.53 - - - 12.7
1050 42    1067 - - - - - 9.53 - - - 12.7
1100 44    1118 - - - - - 9.53 - - - 12.7
1150 46    1168 - - - - - 9.53 - - - 12.7
1200 48    1219 - - - - - 9.53 - - - 12.7

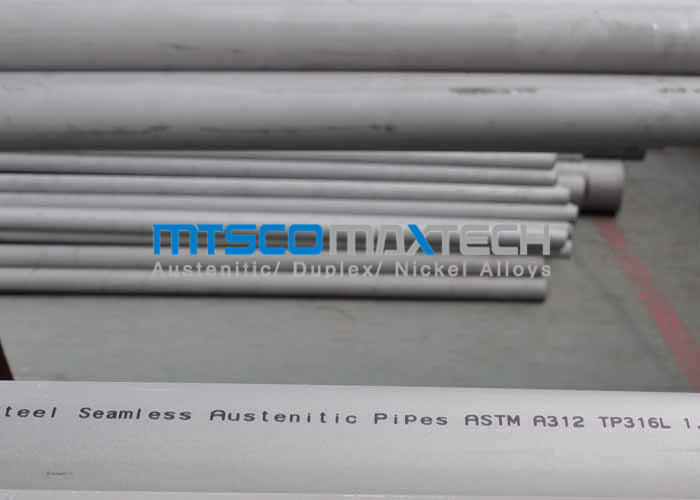

Cold Drawn Stainless Steel Seamless Pipe Big Diameter , TP316L / 1.4404 100mm X 10mm 0



Applications And Advantages :



   MTSCO' s stainless steel seamless pipes can be used in fluid and gas transport industry , structure and machining industry etc . And our seamless pipes is produced by advanced technology of cold draw machine , advanced annealing machine etc . So our pipes have better machanical property , more precise dimension etc . And we will do perfect inspection use inspection equipment .



MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
