ASTM A351 150PSI 316 Casting Pipe Fittings Water Transportation Coupling
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Packaging Details : | Plywood Case |
---|---|---|---|
Delivery Time : | 30 Days | Payment Terms : | T / T ; L / C |
Supply Ability : | 1000 Tons / Year |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOCF06 |
Detail Information |
|||
Product Name: | Casting Fitting Union | Material: | 304/316/CF8/CF8M |
---|---|---|---|
Size: | 1/8”-8” | Standard: | ASTM A351/A351M |
Thread: | NPT, NPSC, BSPP, BSPT Etc | Surface: | SR/ Polish |
Inspection: | Dimension/ Thread/ Material/ NDT | Package: | Cardboard And Wooden Boxes |
Class: | 150# | Application: | Water, Gas, Air, Oil, Steam Pipe System |
High Light: | 0.5in Stainless Steel Casting Pipe Fittings,A351M pipe fitting union,NPT150 pipe fitting union |
Product Description

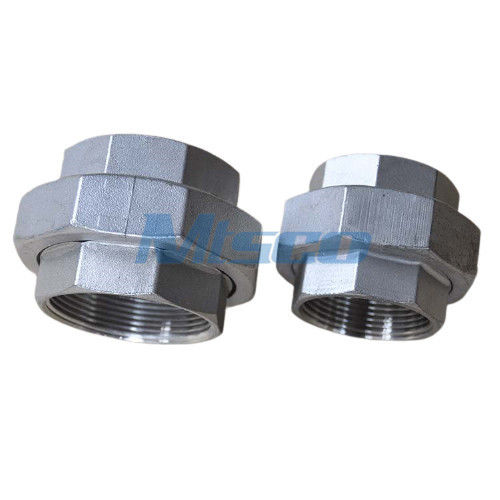

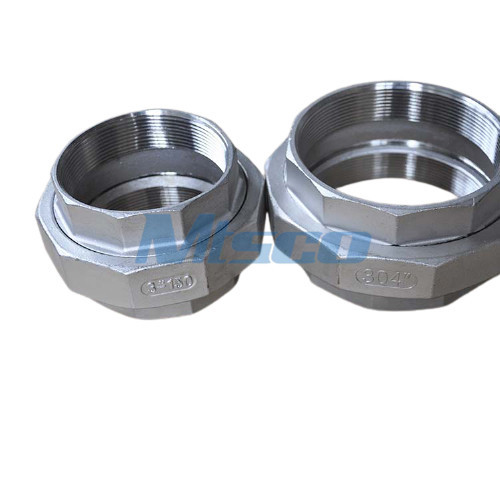

Union 1/2” Stainless Steel Casting Fitting NPT 150# For Gas Pipe System
Metal casting:
In metalworking, metal is heated to a liquid state and then poured into a mold. The mold is a hollow cavity that includes the desired shape, but the mold also includes runners and risers that allow the metal to fill the mold. The mold and metal are then cooled until the metal solidifies. The solidified part (the casting) is then recovered from the mold.
Casting Fitting Union Test:
NDT ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Product Name: Casting Fitting Union
Class: 150#
Standard/ Dimension Standard: ASTM A351/A351M / ISO4144,MSS-SP-114
Size: 1/8”-8”
Connection: Male Female Thread Connection
Thread: NPT, NPSC, BSPP, BSPT etc
Application | Suitable for water, gas, air, oil, steam pipe system. |
Package | Wooden case |
Inspection | Dimension inspection, thread inspection, material inspection and non-destructive inspection |
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving stainless steel customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
