ASTM A789 1.4462 / S32205 duplex stainless steel tube With Good Impact Toughness

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODST51

Detail Information

Material: S32750 /S31803/ S32760 /S32550 / S32205 / Etc Type: Seamless
Standard: ASTM A789 / ASME SA789 / ASTM A790 / ASME SA790 Etc NDT: Eddy Current Or Hydraulic Test
Inspection: 100 % Delivery Condition: Soft / Hard
High Light:

Cold Drawn Tube

,

Duplex Stainless Steel tube

Product Description

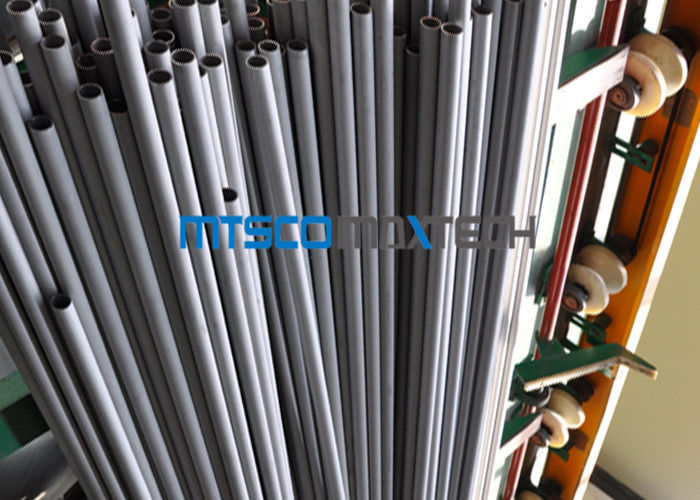

ASTM A789 1.4462 / S32205 Stainless Steel Duplex Tube With Good Impact Toughness







Material Grade: S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc

Outer Diameter: 3.18mm - 101.6mm

Wall Thickness: 0.5mm - 20mm

Length: as per customer’s requirement

Standard: ASTM A789 ; ASTM A790 ; EN 10216-5 etc.



UNS Designation C Si Mn P S Cr Ni Mo N Cu
 max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00





Features :


1 . Outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with critical pitting temperature exceeding 50°C
2 . Excellent ductility and impact strength at both ambient and sub-zero temperatures
3 . High resistance to abrasion, erosion and cavitation erosion
4 . Excellent resistance to stress corrosion cracking in chloride containing environments
5 . ASME approval for pressure vessel application





Terms & Conditions Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time   30 working days after received your deposit (Normally according to the order quantity)
Package Iron case; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Quality Test NTD(Ultrasonic test, Eddy Current test);
Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test);
Metal Test(Metallographic Analysis, Impact Test-High/low temperature);
Chemical Analysis(Photoelectric Emission Spectroscopic)
Market Main Market Europe, Middle East, Southeast Asia, South America. etc







Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance . Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .





ASTM A789 1.4462 / S32205 duplex stainless steel tube With Good Impact Toughness 0
