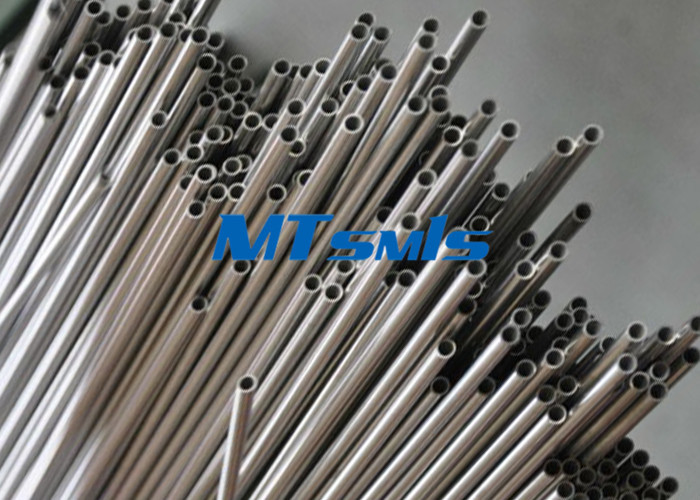

3 / 4 Inch S32750 / S32760 Small Diameter Duplex Steel Tube With Rapid Cooling

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T/T ; L/C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODST53

Detail Information

Material: S32750 / S32760 Type: Seamless
Standard: ASTM A790 / ASTM A789 NDT: Eddy Current Or Hydraulic Test
Inspection: 100 % Length: 6096mm

Product Description

3 / 4 Inch S32750 / S32760 Small Diameter Duplex Steel Tube With Rapid Cooling







Material Grade S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc

Outer Diameter 3.18mm - 101.6mm

Wall Thickness 0.5mm - 20mm

Length as per customer’s requirement

Standard ASTM A789 ; ASTM A790 ; EN 10216-5etc.



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09



industry & Advantage Application a) Petroleum
b) Chemical industry
c) Instrument
d) Industrial transportation
e) Mechanical structure industry
f) Need high corrision ability pipe's industry, such as offshore industry etc
Advantages a) Superior surface finish,
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Terms & Conditions Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time 30 working days after received your deposit (Normally according to the order quantity)
Package Iron case; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Quality Test NTD(Ultrasonic test, Eddy Current test);
Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test);
Metal Test(Metallographic Analysis, Impact Test-High/low temperature);
Chemical Analysis(Photoelectric Emission Spectroscopic)
Market Main Market Europe, Middle East, Southeast Asia, South America. etc





UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00



Test :



1 . NTD ( Ultrasonic test , Eddy Current test )

2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )

3 . Metal Test ( Metallographic Analysis , Impact Test-High/low temperature )

4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )





3 / 4 Inch S32750 / S32760 Small Diameter Duplex Steel Tube With Rapid Cooling
