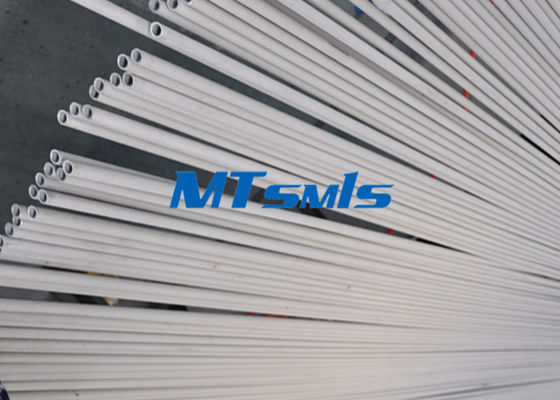

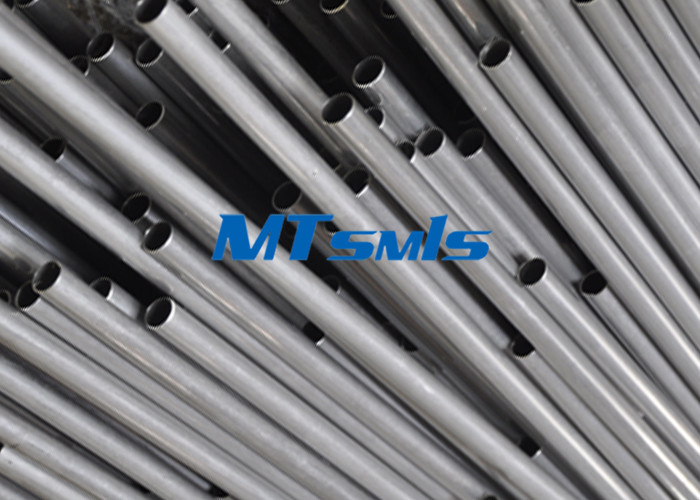

ASTM A249 TP316L / 1.4404 Straight Stainless Steel Welded tubing With ERW / EFW

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHET40

Detail Information

Material: 300 Series Surface: Pickling
U Bent Part Surface: Annealing , Not Pickling Length: 18 M
Standard: ASTM A213 Inspection: 100%
High Light:

heat exchanger tubing

,

heat exchanger pipe

Product Description

ASTM A249 TP316L / 1.4404 Straight Stainless Steel Welded tubing With ERW / EFW



ASTM A249 Standard :


Size ODNominal WallOutside DiameterLengthWall
1/2" (12.7)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
3/4" (19.1)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
1" (25.4)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
1-1/2" (38.1)0.065" (1.65)/0.049" (1.25)+/-0.008" (0.20)+1/8" (3.18) - 0+/-10.0%
2" (50.8)0.065" (1.65)/0.049" (1.25)+/-0.008" (0.20)+1/8" (3.18) - 0+/-10.0%
2-1/2" (63.5)0.065" (1.65)+/-0.010" (0.25)+1/8" (3.18) - 0+/-10.0%
3" (76.2)0.065" (1.65)+/-0.010" (0.25)+1/8" (3.18) - 0+/-10.0%
4" (101.6)0.083" (2.11)+/-0.015" (0.38)+1/8" (3.18) - 0+/-10.0%
6" (152.4)0.083" (2.11)+/-0.030" (0.76)+1" (25.4) - 0+/-10.0%
6" (152.4)0.109" (2.77)+/-0.030" (0.76)+1" (25.4) - 0+/-10.0%
8" (203.2)0.109" (2.77)+0.061" (1.55)/-0.031" (0.79)+1" (25.4) - 0+/-10.0%





Application
a) For fluid & gas transport
b) Structure & machining etc
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc


Process :

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage


Specification :



Size
OD : 4.76 - 25.4mm
WT : 0.71 - 2.11mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm



Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

ASTM A249 TP316L / 1.4404 Straight Stainless Steel Welded tubing With ERW / EFW 0
