TP309s / 310s ASTM A213 Stainless Steel Bright Annealed Tube 6.35 * 0.71mm

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSST50

Detail Information

Material: Stainless Steel 300 Series , 316Ti , 317L , 347 , 321 Standard: EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc
Surface: Annealing NDT: Eddy Current Or Hydraulic Test
Type: Seamless Delivery Condition: Soft / Hard

Product Description

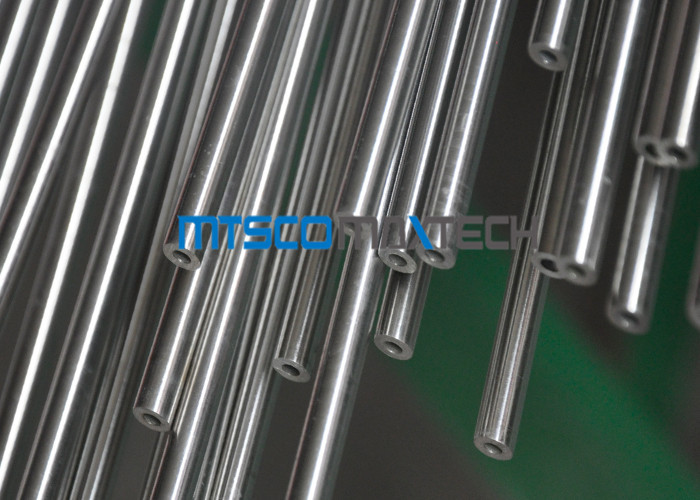

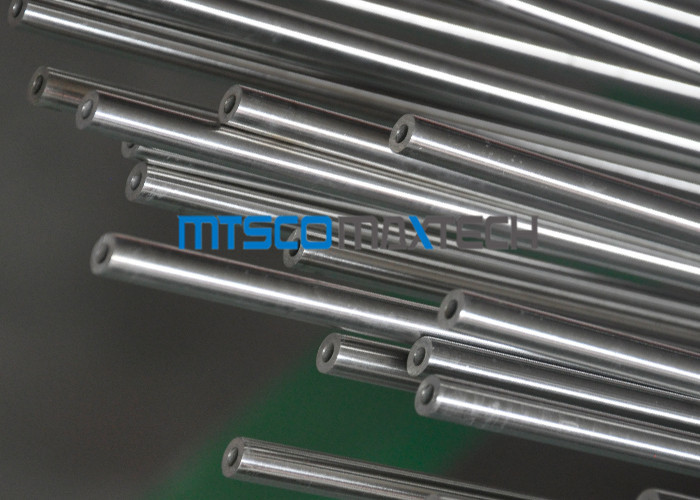

TP309s / 310s ASTM A213, Stainless Steel Bright Annealed Tube 6.35 * 0.71mm







Item Description
Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method Cold Drawn or Cold Rolled
Industry & Advantage Application a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Terms & Conditions Price Item FOB , CFR , CIF or as negotiation
Payment TT, LC or as negotiation
Delivery Time 30 working days after received your deposit ( Normally according to the order quantity )
Package Iron case ; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Quality Test NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Market Main Market

Europe , Middle East , Southeast Asia , South America etc







Specification :











Size
OD : 4.76 - 25.4mm
WT : 0.71 - 2.11mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm





ASTM A213 / A213M Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A





Application :

a) For fluid and gas transport

b) Structure and machining

c) Heat exchanger pipes etc



Advantages :

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Price Item :

FOB, CFR, CIF or as negotiation

Payment :

T/T, LC or as negotiation





TP309s / 310s ASTM A213 Stainless Steel Bright Annealed Tube 6.35 * 0.71mm
