Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP62

Detail Information

Material: TP316L / 1.4404 Standard: ASTM A312
Type: Seamless End Cut: Plain End
Inspection: 100% NDT: Eddy Current Or Hydraulic Test
Delivery Condition: Soft / Hard Caps: With Plastic Caps At Both Ends
High Light:

ASTM A312 Stainless Steel Seamless Pipe

,

TP316L stainless seamless pipe

,

321H Stainless Steel Seamless Pipe

Product Description

ASTM A312 TP316L / 321H Big Size Stainless Steel Seamless Pipe



Stainless Steel Seamless Pipe:



Stainless steel is an iron alloy that contains a minimum of 10.5% chromium. Alloying elements such as nickel, molybdenum, titanium, carbon, nitrogen, and copper can boost the strength, formability, and other properties of stainless steel.



Seamless stainless steel pipe is used in applications where high-temperature strength and superior corrosion resistance are critical.

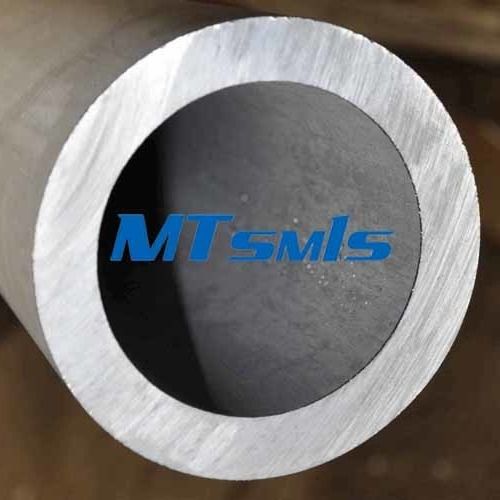

Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 0





Stainless Steel Seamless Pipe Products:



Grade



TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H
Standard ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:10.3-1219mm
  WT:1.24-59.54mm
  Length:Max.12M
Advantage Superior surface finish, better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum, chemical industry, electric power, boiler, high temperature

resistant, low temperature resistant, corrosion resistant. The size can be made according

to the customers' requirements. High-pressure boiler pipe applies to containers, petrochemical, and so on. Note: Generally, high-pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package Plastic in both ends then packed in iron case



Stainless Steel Seamless Pipe Chemical Composition:



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



Stainless Steel Seamless Pipe Product Description:



Outer Diameter 10.3-1219mm
Wall Thickness 1.24-59.54mm
NPS 1/8"-24"
Schedule 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade 304/304L/316/316L/321/309S/310S, etc
Standard ASTM A269, ASTM A312, etc
Application used in Fluid and Gas Transport, Structure and Machining, etc
Certificates ISO9001:2008, PED, BV
Process Method Cold Drawn/ Cold Rolled
Surface Finish Annealed/ Polished
Package Woven bag for each piece then packed in seaworthy wooden cases
Delivery Time 20-60 days after receiving the deposit (Normally according to the order quantity)
Price Item FOB, CIF, or as negotiation
Payment T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main Market Europe, Middle East, Southeast Asia, South America, etc

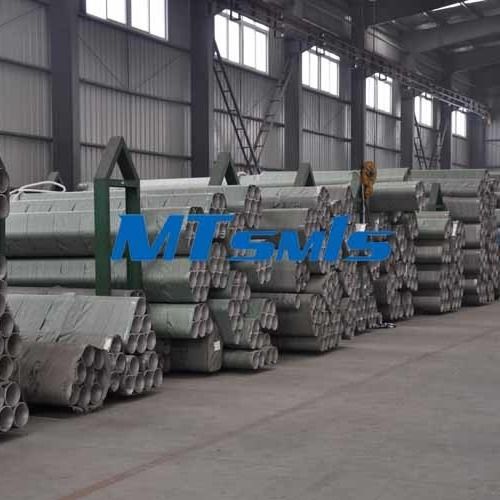

Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 1



About MTSCO:



Who MTSCO IS?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 2



What products can MTSCO provide?





Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 3



Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 4



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



Big Size ASTM A312 TP316L 321H Stainless Steel Seamless Pipe 5
