S30400 / S30403 ASME SA269 Stainless Steel Welded Super Long Coiled Tube For Cable Industry
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT73 |
|
Detail Information |
|||
| Material: | TP347 / 347H | Standard: | ASTM A269 / ASTM A213 Dual Standards Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Type: | Welded |
| Surface: | Bright Annealed / Pickled | Feature: | Flame Retardant |
| High Light: | 0.3mm Bright Annealed Tube,0.3mm Super Long Coiled Tubing,ASTM A213 Super Long Coiled Tubing |
||
Product Description

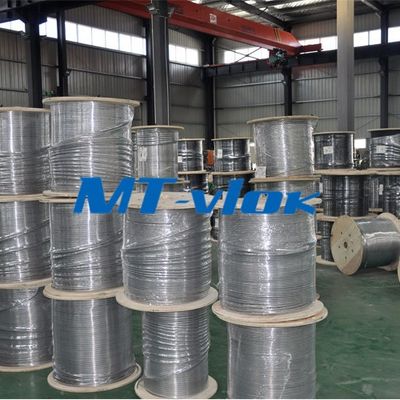

ASTM A213 4*0.3mm Super Long Coiled Tubing Bright Annealed Tube
Super Long Coiled Tubing:
Stainless steel coiled tubing surface passivation film in the corrosion-resistant weak parts, due to self-excited reaction and the formation of pitting reaction, generating small holes, coupled with chloride ions close to the formation of a strong corrosive solution to accelerate the rate of corrosion reaction.
There is also intergranular corrosion cracking within the stainless steel. All of these, the stainless steel coiled and other surfaces of the polymerization film are destructive. Therefore, the stainless steel surface must be regularly cleaned and maintained to maintain its gorgeous surface and extend its service life.
Super Long Coiled Tubing Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Super Long Coiled Tubing Size:
| Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
| HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
| HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
| HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
| HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
| HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
| HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
| HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
| HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
| HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
| HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 |
About MTSCO:
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
