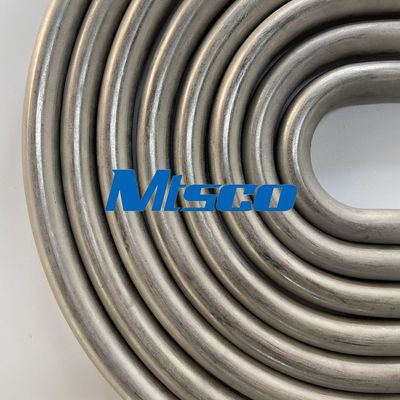

Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHET58

Detail Information

Material: 300 Series Surface: AP
U Bent Part Surface: Annealing Pickling Standard: ASTM A269
Length: 18 M Certification: ISO;PED
Inspection: 100% Application: Oil And Gas
High Light:

ASTM A269 Heat Exchanger Tube

,

ASTM A269 U shaped tube

,

Annealing Heat Exchanger Tube

Product Description

ASTM A269 Stainless Steel Heat Exchanger Tube U Tube Annealing&Pickling



Heat Exchanger Tube:



   Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .



Heat Exchanger Tube Chemical Composition :



Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0     10C -1.10 ^



Heat Exchanger Tube Process :



1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage



Heat Exchanger Tube  Application:



Application : a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger
b) High temperature-resistant transmission fluid pipe in power station
c) Ship with pressure pipe
d) Exhaust purification device
e) Construction and ornament
f) solar industry , military , semiconductor etc



Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube 0



Who MTSCO IS?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube 1



What products can MTSCO provide?





Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube 2



Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



Stainless Steel Annealing Pickling U shaped ASTM A269 Heat Exchanger Tube 4



For more information, you are welcome to contact us by email. Thank you for your interest.
