ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee

Minimum Order Quantity : negotiable Price : 6000-17000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOFPF91

Detail Information

Material: Stainless Steel Surface: Pickling
Type: Seamless Standard: ASTM A403 / ASTM A182
Technics: Forged Pressure: PN150-2500
Package: Plywood Case PMI: 100%
High Light:

S304L 90 Degree Tee Fitting

,

ASTM A403 Flanges Pipe Fittings

,

S304L Flanges Pipe Fittings

Product Description

ASTM A403 S304/304L 90 degrees Stainless Steel Pipe Fitting Elbow



Elbow:



 90 degree elbow changes the flow direction to 90 degrees, it also has a long radius and short radius types, 90 degree elbow is the most used elbow.

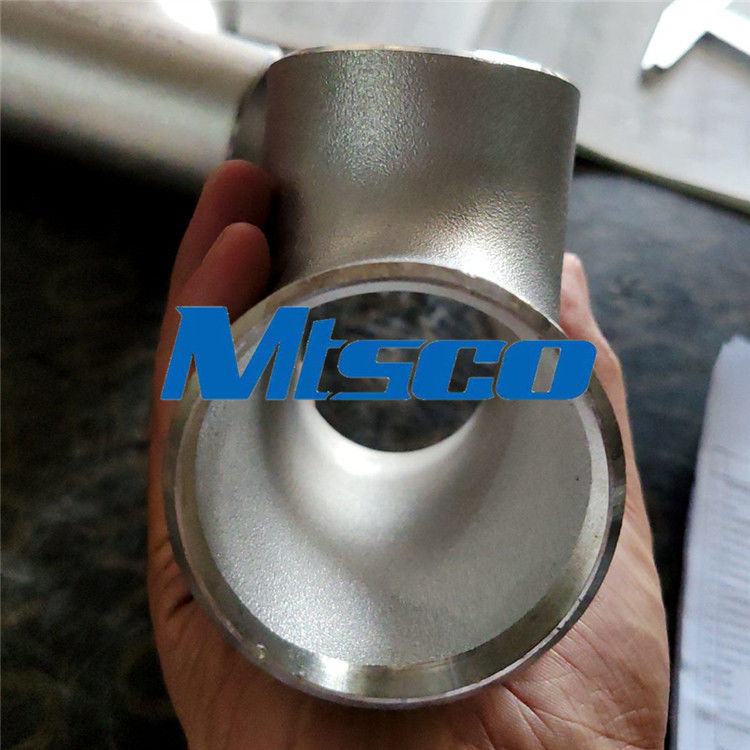

ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 0





Elbow Product Description:



1 . Commodity: Concentric Reducer & Eccentric Reducer , Reducing Tee & Equal Tee, Elbow 45° , 90° , 180° , Cross , Cap , etc
2 . Process Method : Cold Forming
3 . Materials : Stainless Steel , Duplex Steel , etc
4 . Standards : ASME / ANSI B16.9 , B16.28 , ASTM A403 , DIN 2605 , DIN 2609 , DIN 2615 , etc
5 . Size Range :
                       Seamless type: 1/2’’-48’’, DN15-DN50000
                       Welded type: 1/2’’-20’’ DN15-DN1200
6 . Tolerances : according to the specification or customer’s request and drawings
7 . Applications : oil & gas industry , chemical industry , electric power , boiler and heat exchanger , machinery , metallurgy , sanitary construction etc .



ASTM A403 Standard Chemical Composition :



Elements WP304L(wt%) / CR304L / S30403 304(wt%) / CR304 / S30400 316L (wt%) / CR316L /S31603 316 (wt%) / CR316 / S31600
(C) Carbon, max 0.03 0.08 0.03 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



Elbow Basic Information:



Item Description
Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc
Size 1/2" to 48" Sch 5S to XXS
Standard ASTM A403 ASME / ANSI B16.5 etc .
Process Method Forged / Casting
Industry & Advantage Application a) Connect pipes
Advantage a) High technology ; good surface ; high quality etc
Terms & Conditions Price Item FOB , CFR , CIF or as negotiation
Payment T / T , LC or as negotiation
Delivery Time 30 working days after received your deposit ( Normally according to the order quantity )
Package Plywood case or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Quality Test 100% PMI test ; Size test etc
Market Main Market Europe , Middle East , Southeast Asia , South America . Etc

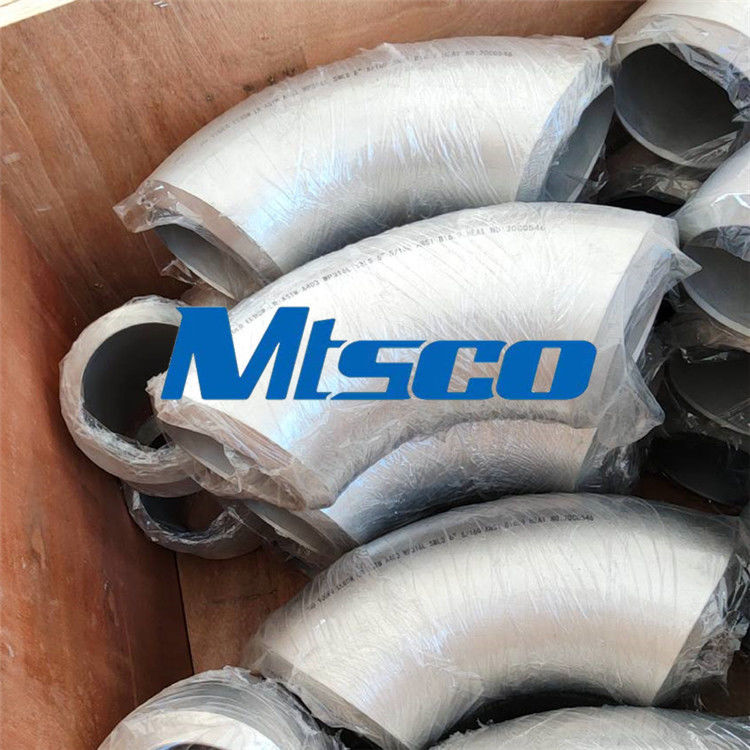

ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 1



About MTSCO:



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 2



What products can MTSCO provide?





ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 3



ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 4



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



ASTM A403 Stainless Steel Flanges Pipe Fittings S304L 90 Degree Tee 5



Thank you very much for reading this, I wonder if my presentation will help you with your current problem? Looking forward to hearing from you!
