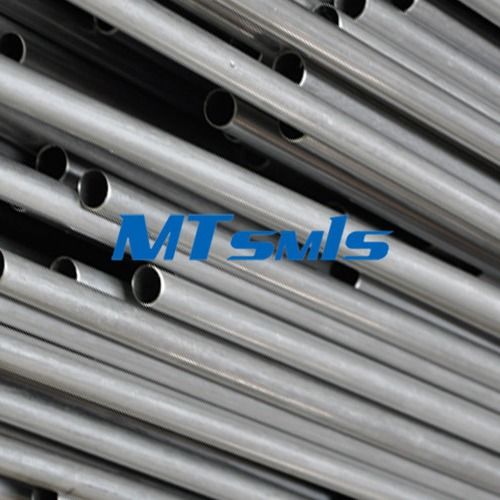

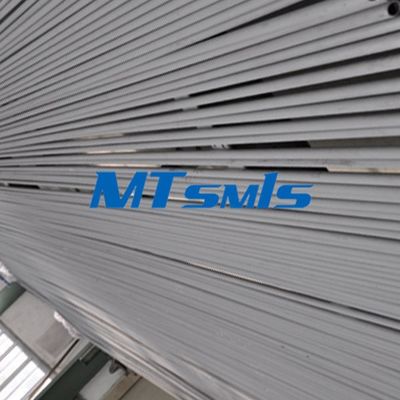

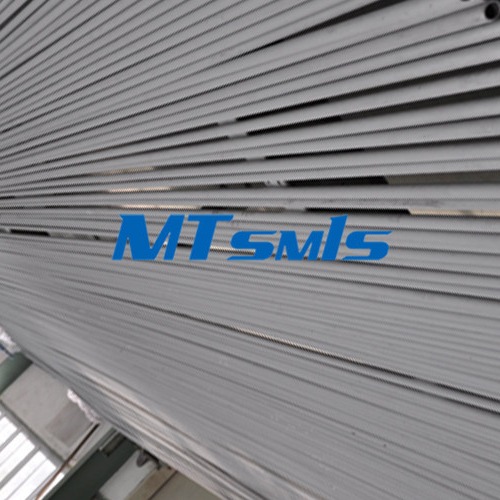

ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHET38

Detail Information

Material: 304/316/317/321/347/31803 Standard: ASTM A269/249/213/789
Type: Welded/Seamless Surface: Pickling
U Bent Part Surface: Annealing , Not Pickling Length: According To Customer Needs Up To 20m
Inspection: 100% NDT: Eddy Current Or Hydraulic Test
Certificate: ISO9001/PED Packge: Wooden Case
High Light:

ASTM A213 Heat Exchanger Tube

,

TP316 stainless steel straight pipe

,

TP316 Heat Exchanger Tube

Product Description

ASTM A213 TP316 Stainless Steel Straight Heat Exchange Tube For Chemical Equipment





   Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .





Heat Exchange Tube Production Process :

1 . We use Cold Drawn technology to produce U bend tube

2 . U bend tubes produce will accordance to customer's drawings

3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate

4 . The radius is checked for its OD and wall thinning with the recommended specification

5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test

6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test

7 . Each tube is then hydro tested at the recommended pressure to check for leakage



Grade



TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H





Standard



ASTM A213 , ASTM A 269 , ASTM A789 , etc
Size



Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm





WT : 1.2-2.77mm





Length : According to customer needs up to 20m



Advantage



Superior surface finish

Better mechanical property

More precise dimension ;

Perfect inspection method and inspection equipment





Stainless Steel Heat Exchange Tube Application :



a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger

b) High temperature-resistant transmission fluid pipe in power station

c) Ship with pressure pipe

d) Exhaust purification device

e) Construction and ornament

f) solar industry , military , semiconductor etc



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment 0

About MTSCO:



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment 1



What products can MTSCO provide?





ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment 2



ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



ASTM A213 TP316 Stainless Steel Straight Heat Exchanger Tube For Chemical Equipment 4



Thank you very much for reading this, I wonder if my presentation will help you with your current problem? Looking forward to hearing from you!
