ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHET40

Detail Information

Material: 304/316/317/321/347/31803 Standard: ASTM A269/249/213/789
Surface: Pickling Type: Welded/Seamless
U Bent Part Surface: Annealing , Not Pickling Length: According To Customer Needs Up To 20m
Inspection: 100% Certificate: ISO9001/PED
NDT: Eddy Current Or Hydraulic Test Packge: Wooden Case
High Light:

TP321H Heat Exchanger Tube

,

19.05mm Stainless Steel Tubing

,

19.05mm Heat Exchanger Tube

Product Description

ASTM A213 TP321/321H 19.05mm Stainless Steel Tubing Cold Rolled For Boiler



   Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .





Grade TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H

Standard



ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ; ASTM A789 , etc
Size Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm
WT : 1.2-2.77mm
Length : According to customer needs up to 20m
Advantage



Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment



Application



Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .



Package



Plywood case





ASTM A269 Heat ExchangeTube Material Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A


Heat Exchange Tube Application :



a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger

b) High temperature-resistant transmission fluid pipe in power station

c) Ship with pressure pipe

d) Exhaust purification device

e) Construction and ornament

f) solar industry , military , semiconductor etc

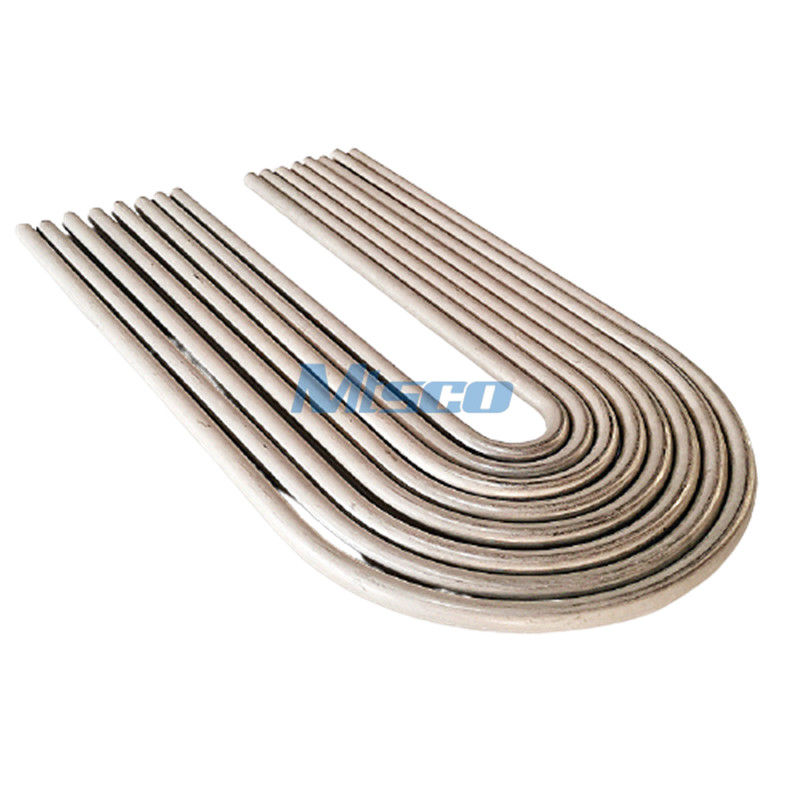

ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler 0



About MTSCO:



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.

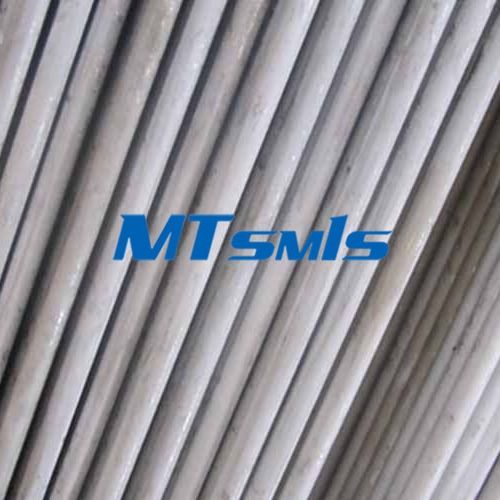

ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler 1



What products can MTSCO provide?





ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler 2



ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



ASTM A213 TP321/321H 19.05mm Heat Exchanger Tube Stainless Steel Tubing Cold Rolled For Boiler 4
