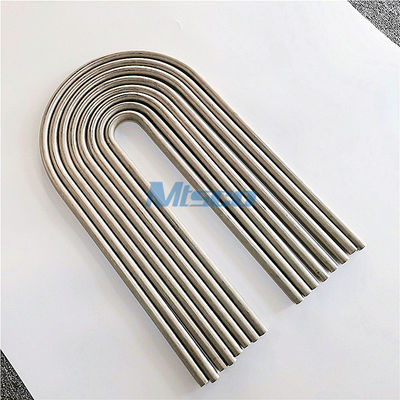

25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOHET45

Detail Information

Material: 31803/32750/304/316/317/321/347 Standard: ASTM A789/269/249/213
Type: Welded/Seamless Length: According To Customer Needs Up To 20m
U Bent Part Surface: Annealing , Not Pickling Surface: Pickling
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
Certificate: ISO9001/PED Packge: Wooden Case
High Light:

25.4mm seamless welded pipe

,

PED seamless welded pipe

,

25.4mm Duplex Steel pipe

Product Description

25.4mm Cold Rolled Seamless/ Welded U Bend Tube Duplex Steel For Heat Exchanger



MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .



Heat Exchange Tube Application :



a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger

b) High temperature-resistant transmission fluid pipe in power station

c) Ship with pressure pipe

d) Exhaust purification device

e) Construction and ornament

f) solar industry , military , semiconductor etc





Duplex Steel Tube Chemical Composition:



UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00







Grade S31803; TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H

Standard



ASTM A789, ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ,etc
Size Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm
WT : 1.2-2.77mm
Length : According to customer needs up to 20m
Advantage Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment
Application Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .
Package Plywood case









25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger 0



About MTSCO:



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.



25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger 1



What products can MTSCO provide?





25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger 2



25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger 3



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.



25.4mm U Bend Cold Rolled Seamless Welded Pipe Duplex Steel For Heat Exchanger 4
