S31803 / S32205 Small Size 1/2 Inch Duplex Seamless Steel Tube For Chemical
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T/T ; L/C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCODST36 |
|
Detail Information |
|||
| Material: | S31803 / S32750 | Type: | Seamless |
|---|---|---|---|
| Standard: | ASTM A790 / ASTM A789 | NDT: | Eddy Current Or Hydraulic Test |
| Inspection: | 100 % | Length: | 6096mm |
| Product Name: | Annealed Duplex Tube | ||
| High Light: | 6096mm Duplex Steel Tube,Annealed Duplex Steel Tube,ASTM A789 UNS S31803 |
||
Product Description

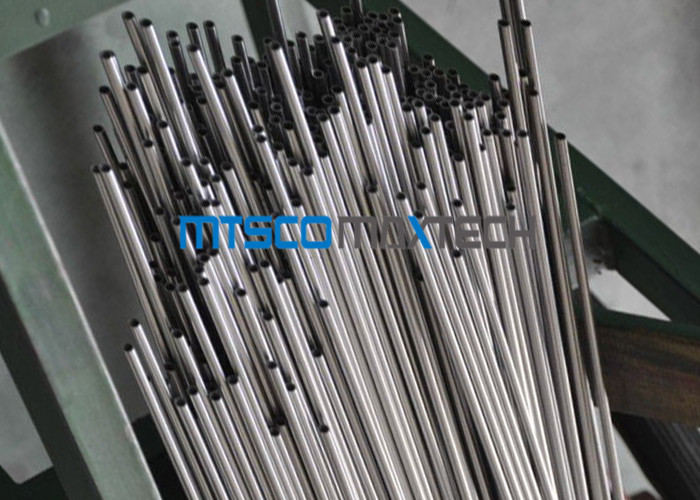

Seamless 6096mm Annealed Duplex Steel Tube ASTM A789 UNS S31803
The main differences in composition, when compared with an austenitic stainless steel is that the duplex steels have a higher chromium content, 20–28%; higher molybdenum, up to 5%; lower nickel, up to 9% and 0.05–0.50% nitrogen. Both the low nickel content and the high strength (enabling thinner sections to be used) give significant cost benefits. They are therefore used extensively in the offshore oil and gas industry for pipework systems, manifolds, risers, etc. and in the petrochemical industry in the form of pipelines and pressure vessels.
|
Item |
Description |
|
|
Basic Information |
Material Grade |
S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc |
|
Outer Diameter |
3.18mm - 101.6mm |
|
|
Wall Thickness |
0.5mm - 20mm |
|
|
Length |
Normally fixed length 6m , can as per customer’s requirement |
|
|
Standard |
ASTM A789 ; ASTM A790 ; EN 10216-5 etc. |
|
|
Process Method |
Cold Drawn or Cold Rolled |
|
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
Application
a) Petroleum
b) Chemical industry
c) Instrument
d) Industrial transportation
e) Mechanical structure industry
f) Need high corrision ability pipe's industry, such as offshore industry etc
Advantages
a) Superior surface finish,
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
