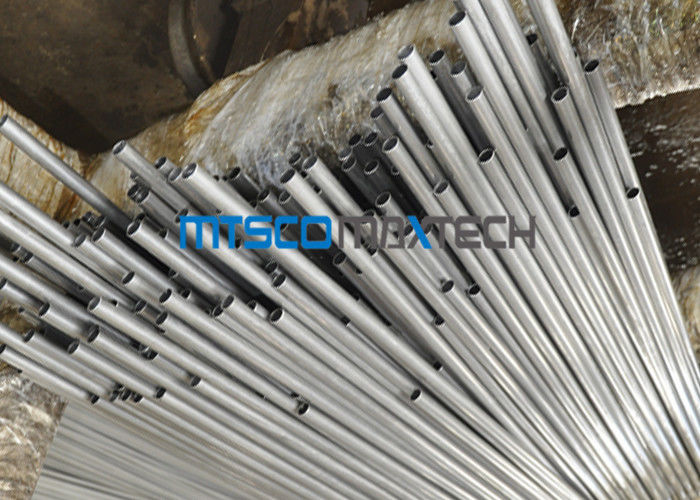

2205 Duplex Pipe Material ASTM A789 SA789 Stainless Steel Seamless Pipe

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODST13

Detail Information

Seamless Stainless Steel Tubing: Seamless Stainless Steel Tubing Material: 2205 / 31803
Type: Seamless Technology: Cold Drawn
Standard: ASTM A789 & ASTM A790 Surface: Pickling/ Bright Annealed
High Light:

2205 duplex pipe material

,

duplex pipe material ASTM A789

,

SA789 stainless steel seamless pipe

Product Description

2205 Duplex Steel Tube , ASTM A789/SA789 Seamless Stainless Steel Tubing Cold Rolled





Duplex stainless steel grades must be cooled as quickly as possible to room temperature after hot forming to avoid the precipitation of intermetallic phases (Sigma phase in particular) which drastically reduce the impact resistance at room temperature as well as the corrosion resistance..

Alloying elements Cr, Mo, W, Si increase the stability and the formation of intermetallic phases. Therefore super duplex grades have a higher hot working temperature range and require faster cooling rates than the lean duplex grades.



Grade



TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard



ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD: 3.18- 101.6 MM
WT: 0.5- 20MM
Length: Fixed Length Or Random Length
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant.The size can be made according to the customers requirements.High pressure boiler pipe applies to container,petrochemical and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650.

Package Plywood case; woven bag





UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00



2205 Duplex Pipe Material ASTM A789 SA789 Stainless Steel Seamless Pipe 0
