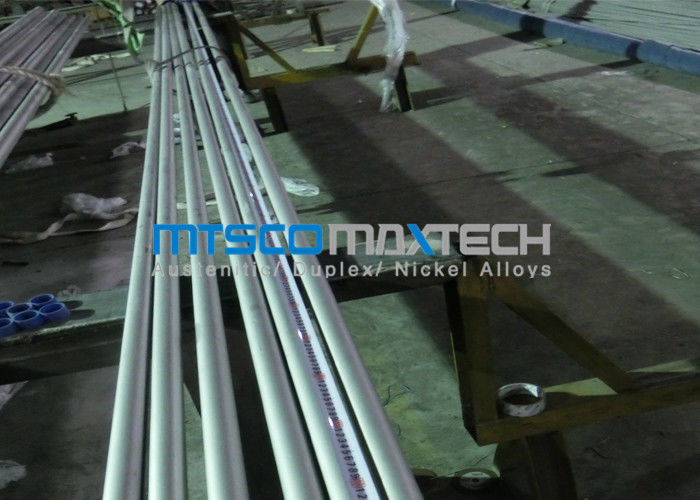

2205 Astm A789 Seamless Duplex Steel Tube Pipe Uns S31803

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCODST27

Detail Information

Material: Duplex S31803 / S32205 / S32750 / S32760 Type: Seamless
Standard: ASTM A790 / ASTM A789 Length: 10 FT / 20 FT
Shape: Round.square.Rectangle
High Light:

astm a789 duplex steel tube


uns s31803 seamless duplex steel tube


2205 duplex stainless steel pipe

Product Description


Pipe Stainless Steel Duplex 2205 ASTM A789 Seamless Pipe UNS S31803 Stainless Steel Tube


UNS S31803 duplex stainless steel stockholders and suppliers, delivering to the whole of the UK. West Yorkshire Steel are suppliers of UNS S31803, a chromium nickel molybdenum austenitic ferritic grade. It combines improved resistance to stress corrosion cracking, pitting, crevice corrosion and high strength in comparison with other stainless steel grades. UNS S31803 grade duplex resists chloride environments and sulphide stress corrosion. It is approximately double the yield strength of standard austenitic stainless steel grades. As with other duplex stainless steel specifications oxidation resistance is good at high temperature, though it is prone to embrittlement when exposed to temperatures above 300°C and is prone to embrittlement at 475°C when exposed for 2 hours only. It is also subject to embrittlement between 370-540°C when exposed over a longer period.



Stainless steel pipe
Material 201,202,303, 303Cu,304,304L,316,316L,310S,316Ti,321,430,904L,etc
Surface Black,bright,roungh turned,polishing,blasting,grinding,centreless ground,pickled,etc
Type hot rolled and cold rolled

Stainless steel

round pipe/tube

Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 6mm-2500mm(3/8''-100'')

Stainless steel

square pipe/tube

Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 4mm*4mm-800mm*800mm

Stainless steel

rectangular pipe/tube

Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 6mm-2500mm(3/8''-100'')


or as required


MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright

annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and

pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing

equipment. We can totally satisfy your requirement .

According to standard very strictly , duplex steel tubes which produced by us always have correct OD and WT

tolerance . And they have more perfect corrosion ability .


ASTM A789 / A789M


UNS Designation T.S. Min , Ksi [Mpa] Y.S. Min , Ksi [Mpa] Elongation Min % Hardness, Max
S32750 116 [800] 80 [550] 15 32
S32760 109 [750] 80 [550] 25



2205 Astm A789 Seamless Duplex Steel Tube Pipe Uns S31803 0
