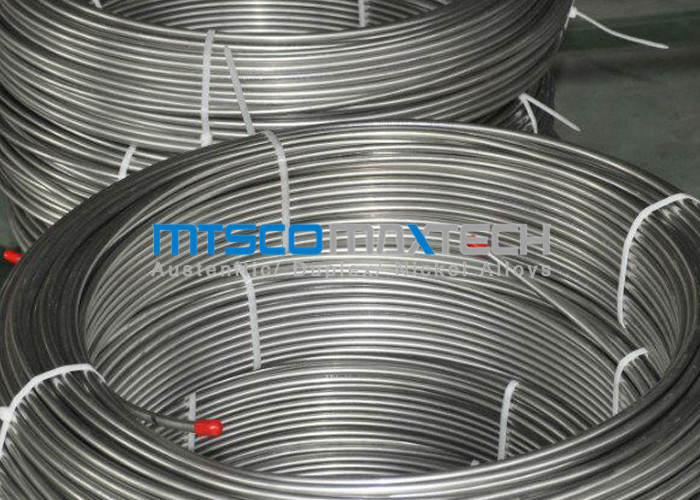

Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm
Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm
Contact Now

Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOSSCT03

Detail Information
Material: TP316L / 1.4404 Standard: ASTM A269 / ASTM A213
Delivery Condition: Soft / Hard Every Coil: About 30Kgs Per / Coil
Technology: Cold Drawn Surface: Bright Annealed
High Light:

stainless steel coil pipe

,

coiled stainless tube

Product Description

Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm


Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
Specification :









Size

OD : 4.76 - 25.4mm

WT : 0.71 - 2.11mm

Length : >1000Meters

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm


Test :


 1

100% PMI , Spectro Chemical Aanlysis Test For Raw Material

 2

100% Dimension & Visual Examination

 3

Mechanical Properties Test Include Tension Test , Flaring Test ( For Seamless Tube / Pipe ) , Hardness Test , Reversed Flattening Test

 4

100% Hydrostatic Test Or 100% Non-Destructive Test  (ET Or UT)

 5

Straightness Test ( Optional )

 6

Roughness Test ( Optional )

 7

Intergranular Corrosion Test ( Optional )

 8

Impact Test ( Optional )

 9

Grain Size Determinations ( Optional )

10

All The Tests And Inspection Result Need To Be Showed In Reports Accorance To Standard And Specification .



Cold Drawn Stainless Steel Seamless Coiled Tubing 9.53mm x 0.89mm 0

MTSCO is a leading manufacturer who is specialized in seamless coiled tubing produce . Stainless steel seamless coiled tubing final surface is bright annealed. According to standard very strictly, tubes which produced by us always have correct OD and WT tolerance. They are very popular in military, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc. They can be used in many others industries also .
