ASTM A213 TP304L Seamless Steel Seamless Tube,Bright Annealed Tube
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 6000-12000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOBAT03 |
Detail Information |
|||
Material: | TP304 | Delivery Condition: | Soft / Hard |
---|---|---|---|
Surface: | Polished 180 # 320 # 400 # 600 # 800 # & Bright Annealed | Technology: | Cold Drawn |
Inspection: | 100% | NDT: | Eddy Current Or Hydraulic Test |
High Light: | cold rolled tube,annealed tubing |
Product Description
ASTM A269 TP304 Bright Hydraulic Tube Hardness / Flattening Mechanical Testing
Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed. And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance. And they are very suitable for chromatography industry.
Where can be used ?
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry
ASTM A213 / A213 M | |
Elements | 304(wt%) |
(C) Carbon, max | 0.08 |
(Mn) Manganese, max | 2 |
(P) Phosphorus, max | 0.045 |
(S) Sulfur, max | 0.03 |
(Si) Silicon, max | 1 |
(Ni) Nickel | 8.0 - 11.0 |
(Cr) Chromium | 18.0 - 20.0 |
(Mo) Molybdenum | N/A |
(Fe) Iron | Bal. |
(Cu) Copper | N/A |
(N) Nitrogen | N/A |
MTSCO has been dedicated to producing bright annealed tubes since 2014 , owning complete producing technology and abundant managing experience . And the raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc . Also we have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on . Welcome you contact us in free !
Corrosion Test | If clients need will be conducted |
Chemical Analysis | Will be tested as per required quality standards |

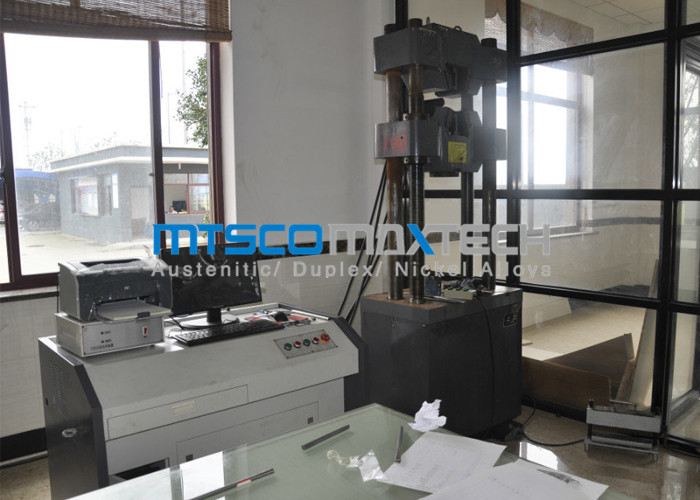

Destructive / Mechanical Testing | Tensile / Hardness / Flattening |
Eddy Current Testing | Using digital flaw-mark testing System to do test and mark in surface homogeneities |
Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
Air Under Pressure Test | To check any evidence of air leakage |
Visual Inspection | After passivation, every single length of tubes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
