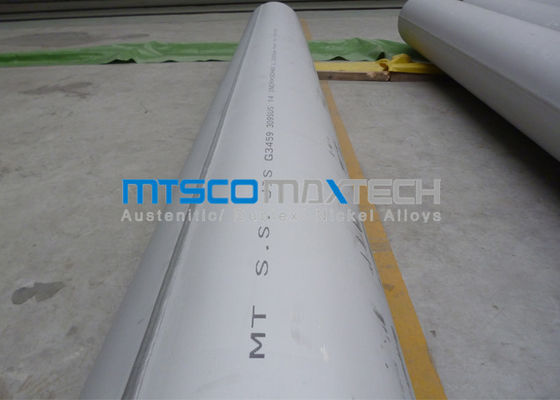

TP309S Welded Stainless Steel Pipe 14 INCH SCH40 , 355.6mm x 11.13mm

Minimum Order Quantity : negotiable Price : 2400-12000USD/TON
Packaging Details : Plywood Case / Bundles Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOSSSP03

Detail Information

Material: TP309S Size: 14 Inch Sch40 , 355.6mm * 11.13mm
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
Surface: Pickling Length: 5800mm
High Light:

welded stainless steel pipe

,

welded stainless steel pipes

Product Description

TP309S Welded Stainless Steel Pipe 14 INCH SCH40 , 355.6mm x 11.13mm







Application :



1 . For fluid and gas transport

2 . Structure and machining

3 . Heat exchanger pipes etc



Advantages :



1 . Superior surface finish

2 . Better mechanical property

3 . More precise dimension

4 . Perfect inspection method and inspection equipment



Test :



1 . X-ray , Size test , Length test

2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc



ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe





MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .



TP309S Welded Stainless Steel Pipe 14 INCH SCH40 , 355.6mm x 11.13mm 0



ASTM A312 Standard
TP309S / S30908 Elements
(C) Carbon , max : 0.08
(Mn) Manganese , max : 2.00
(P) Phosphorus , max : 0.045
(S) Sulfur , max : 0.030
(Si) Silicon , max : 1.00
(Ni) Nickel : 12.0 - 15.0
(Cr) Chromium : 22.0 - 24.0
(Mo) Molybdenum : 0.75
(Fe) Iron : --
(Cu) Copper : --
(N) Nitrogen : --
