Alloy 400/600 Nickel Alloy U Bend Heat Exchanger Tube Annealed Surface
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
|Minimum Order Quantity :||negotiable||Price :||3700-9000USD/TON|
|Packaging Details :||Plywood Case||Delivery Time :||30 Days|
|Payment Terms :||T / T ; L / C||Supply Ability :||300 Tons / Month|
|Place of Origin:||CHINA||Brand Name:||MTSCO|
|Certification:||ISO 9001 & PED||Model Number:||MTSCOHET04|
|U Bent Part Surface:||Annealing , Not Pickling||NDT:||Eddy Current Or Hydraulic Test|
|Packge:||Wooden Case||Length:||According To Customer Needs Up To 20m|
heat transfer tube,
heat exchanger tubing

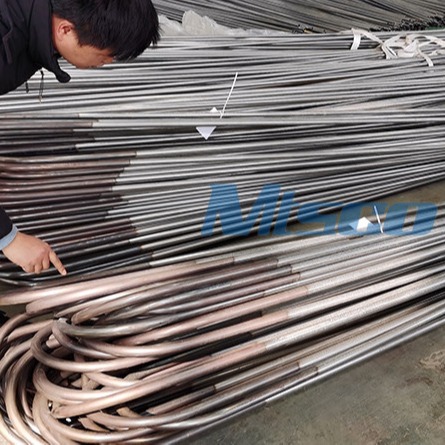

Stainless Steel Seamless Heat Exchange Tube U Bend Cold Rolled Tube For Desalination
Heat Exchange Tube Production Process :
1 . We use Cold Drawn technology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage
TP304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H
|ASTM A213 , ASTM A 269 , ASTM A789 , etc|
Routine OD : 19.05mm,25.4mm,31.8mm,38.1mm
WT : 1.2-2.77mm
Length : According to customer needs up to 20m
Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .
U bend Tube Advantage:
Superior surface finish
Better mechanical property
More precise dimension ;
Perfect inspection method and inspection equipment
Who MTSCO is?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Duplex steel: 31803,32205,32750,32760
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
Thank you very much for reading this, I wonder if my presentation will help you with your current problem? Looking forward to hearing from you!
