ASTM A790 / ASME SA790 Duplex Steel Pipe For Heat Coils , 6000mm Stainless Seamless Pipe
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 5000-9000USD/TON |
---|---|---|---|
Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCODSP07 |
Detail Information |
|||
Material: | 1.4410 / S32750 / 2507 / 1.4462 / S31803 / 2205 / Etc | Type: | Seamless |
---|---|---|---|
Ends: | PE / BE | Standard: | ASTM A790 / SA790 ; ASTM A789 / SA789 ; ASTM A312 Etc |
NDT: | Eddy Current Or Hydraulic Test | Delivery Condition: | Soft / Hard |
Highlight: | Seamless Duplex Pipe,Cold Drawn Pipe |
Product Description

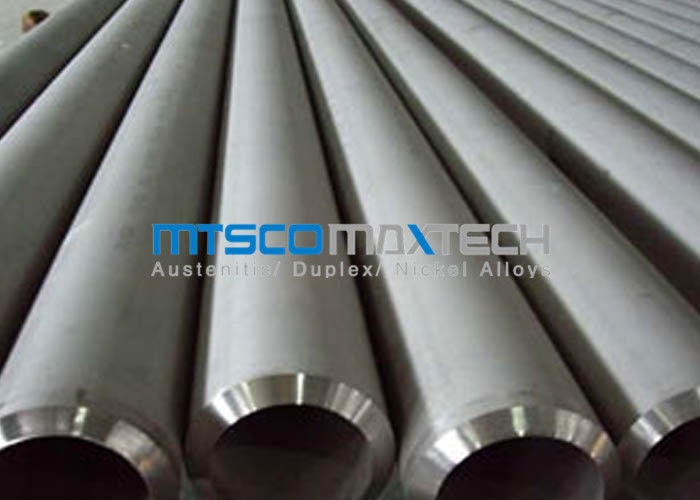

UNS S31803 Duplex Steel Pipe Cold Rolled Pipe 1.4410 Material
ASTM A789 / A789M | ||||
UNS Designation | T.S. Min , Ksi [Mpa] | Y.S. Min , Ksi [Mpa] | Elongation Min % | Hardness, Max |
S31803 ( F51 ) | 90 [620] | 65 [450] | 25 | 30.5 |
S32205 ( F60 ) | 95 [655] | 70 [485] | 25 | 30.5 |
S32750 ( F53 ) | 116 [800] | 80 [550] | 15 | 32 |
S32760 ( F55 ) | 109 [750] | 80 [550] | 25 | … |
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
max | max | max | max | max | ||||||
S31803 ( F51 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
S32205 ( F60 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
S32750 ( F53 ) | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
S32760 ( F55 ) | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series
stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .
Material Grade | S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc |
Outer Diameter |
10.3mm - 1219mm |
Wall Thickness |
1.24mm - 54.59mm |
Length | as per customer’s requirement |
Standard |
ASTM A789 ; ASTM A790 ; EN 10216-5ect . |
Application :
1 . Petroleum
2 . Chemical industry
3 . Instrument
4 . Industrial transportation
5 . Mechanical structure industry
6 . Need high corrision ability pipe's industry , such as offshore industry etc
20ft GP : 5898mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )
40ft GP : 12032mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )
40ft HC : 12032mm ( Lengh ) x 2352mm ( Width ) x 2698mm ( High )
20 feet container load 25tons coils whose length is under 5.8m
40 feet container load 25tons coils whose length is under 11.8m
