High Temperature Precision Stainless Steel Tubing ASTM A269 304L Thick Wall

Product Details:
Place of Origin: CHINA
Brand Name: MTSCO
Certification: ISO 9001 & PED
Model Number: MTSCOPSST07
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: 6000-12000USD/TON
Packaging Details: Iron Case / Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month

Detail Information

Material: Stainless Steel / Duplex Steel End Cut: Plain End ( PE ) / Bevel End ( BE )
Delivery Condition: Soft / Hard NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Type: Seamless

Product Description

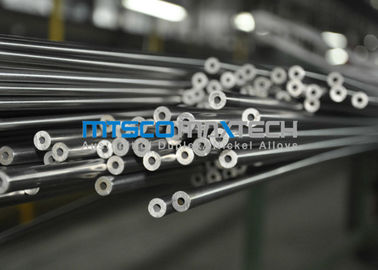

High Temperature Precision Stainless Steel Tubing ASTM A269 304L Thick Wall

   MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .



Specification :











Size

OD : 4.76 - 25.4mm

WT : 0.71 - 2.11mm

Length : According to clients requirement

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm

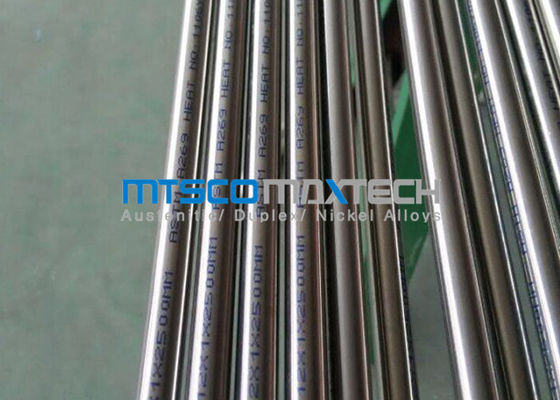

High Temperature Precision Stainless Steel Tubing ASTM A269 304L Thick Wall



Applications :
1) . Petroleum , Chemical enterprise , Superheater of boiler , Heat exchanger
2) . High temperature resistant transmission fluid pipe in power station
3) . Ship with pressure pipe
4) . The exhaust purification device
5) . Construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms
6) . Equipment and Medical devices


Chemical Composition :



ASTM A269
Elements 304L ( wt% )
(C) Carbon, max 0.035
(Mn) Manganese, max 2
(P) Phosphorus, max 0.045
(S) Sulfur, max 0.03
(Si) Silicon, max 1
(Ni) Nickel 8.0 - 12.0
(Cr) Chromium 18.0 - 20.0
(Mo) Molybdenum N/A
(Fe) Iron Bal.
(Cu) Copper N/A
(N) Nitrogen N/A


Test :

1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )

Main Market :

MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .
