ASTM A790 / ASME SA790 Duplex Steel Pipe For Heat Coils , 6000mm Stainless Seamless Pipe
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 5000-9000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCODSP08 |
|
Detail Information |
|||
| Material: | 1.4410 / S32750 / 2507 / F53 / 1.4462 / S31803 / 2205 / F60 / S32760 / F55 Etc | Type: | Seamless |
|---|---|---|---|
| Ends: | PE / BE | Standard: | ASTM A790 / SA790 ; ASTM A789 / SA789 ; ASTM A312 Etc |
| NDT: | Eddy Current Or Hydraulic Test | Delivery Condition: | Soft / Hard |
| High Light: | Duplex Stainless Steel Pipe,Cold Drawn Pipe |
||
Product Description

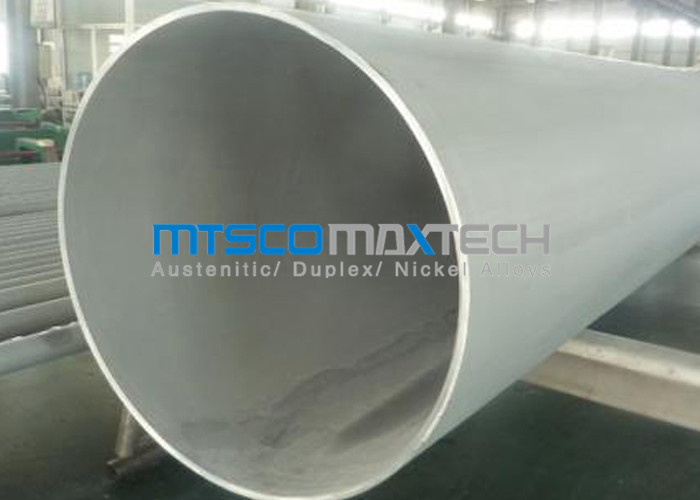

UNS S32750 UNS S32760 Duplex Stainless Steel Pipe In Oil And Gas Industry
Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series
stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .
| ASTM A789 / A789M | ||||
| UNS Designation | T.S. Min , Ksi [Mpa] | Y.S. Min , Ksi [Mpa] | Elongation Min % | Hardness, Max |
| S31803 ( F51 ) | 90 [620] | 65 [450] | 25 | 30.5 |
| S32205 ( F60 ) | 95 [655] | 70 [485] | 25 | 30.5 |
| S32750 ( F53 ) | 116 [800] | 80 [550] | 15 | 32 |
| S32760 ( F55 ) | 109 [750] | 80 [550] | 25 | … |
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 ( F51 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 ( F60 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 ( F53 ) | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 ( F55 ) | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
Description :
1 . Outer Diameter : 10.3mm - 1219mm Material Grade : S32205 , S31803 , S32304 , S32750, 2205 , 2507 Etc
2 . Wall Thickness : 1.24mm - 59.54mm
3 . Length : As per customer’s requirement
4 . Standard : ASTM A789 ; ASTM A790 ; EN 10216-5ect .
Application :
1 . Petroleum
2 . Chemical industry
3 . Instrument
4 . Industrial transportation
5 . Mechanical structure industry
6 . Need high corrision ability pipe's industry , such as offshore industry etc
20ft GP : 5898mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )
40ft GP : 12032mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )
40ft HC : 12032mm ( Lengh ) x 2352mm ( Width ) x 2698mm ( High )
20 feet container load 25tons coils whose length is under 5.8m
40 feet container load 25tons coils whose length is under 11.8m
