Home ProductsStainless Steel Welded PipeASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT

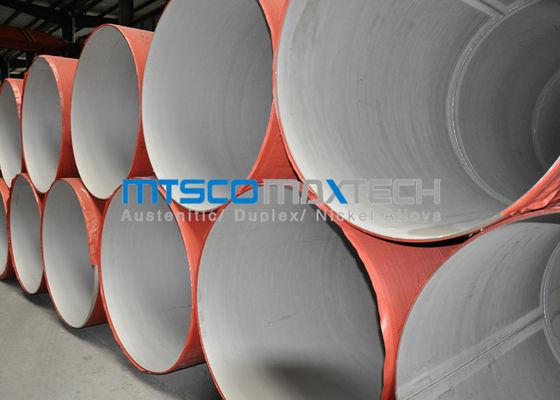

ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT
ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT
Contact Now

ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT

Minimum Order Quantity : negotiable Price : 2400-12000USD/TON
Packaging Details : Plywood Case / Bundles Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOSSSP11

Detail Information
Material: 300 Series Stainless Steel Type: Welded
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
Surface: Pickling & Annealing Process: ERW , EFW Etc
High Light:

welded stainless steel pipe

,

welded stainless steel pipes

Product Description

ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT



Standards :



ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe



Test :



1 . X-ray , Size test , Length test

2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc



   MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

   MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes ,  seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.3 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.7 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.1 - 1.65 2.31 2.31 2.31 3.2 3.2 3.2 - -
15 1/2 21.3 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.7 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.4 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.2 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.7
40 1 1/2 48.3 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.3 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3    88.9 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.6 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4    114.3 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5    141.3 2.77 3.4 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6    168.3 2.77 3.4 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8    219.1 2.77 3.76 8.18 8.18 8.18 12.7 12.7 12.7 23.01 22.23
250 10    273.1 3.4 4.19 9.27 9.27 9.27 15.09 12.7 12.7 28.58 25.4
300 12    323.9 3.96 4.57 9.53 9.53 10.31 17.48 12.7 12.7 33.32 25.4
350 14    355.6 3.96 4.78 - 9.53 11.13 19.05 12.7 - 35.71 -
400 16    406.4 4.19 4.78 - 9.53 12.7 21.44 12.7 - 40.49 -
450 18    457.2 4.19 4.78 - 9.53 14.27 23.83 12.7 - 45.24 -
500 20    508 4.78 5.54 - 9.53 15.09 26.19 12.7 - 50.01 -
550 22    559 4.78 5.54 - 9.53 - 28.58 12.7 - 53.98 -
600 24    610 5.54 6.35 - 9.53 17.48 30.96 12.7 - 59.54 -
650 26    660 - - - 9.53 - - 12.7 - - -
700 28    711 - - - 9.53 - - 12.7 - - -
750 30    762 6.35 7.92 - 9.53 - - 12.7 - - -
800 32    813 - - - 9.53 17.48 - 12.7 - - -
850 34    864 - - - 9.53 17.48 - 12.7 - - -
900 36    914 - - - 9.53 19.05 - 12.7 - - -
950 38    965 - - - 9.53 - - 12.7 - - -
1000 40    1016 - - - 9.53 - - 12.7 - - -
1050 42    1067 - - - 9.53 - - 12.7 - - -
1100 44    1118 - - - 9.53 - - 12.7 - - -
1150 46    1168 - - - 9.53 - - 12.7 - - -
1200 48    1219 - - - 9.53 - - 12.7 - -

-



ASTM A312 Welded Pipe Plain Ends , Stainless Steel Thin Wall Pipe With RT 0
