Alloy 601 / UNS N06601 Nickel Alloy Tube 26.67 x 2.87 x 1200 mm , Alloy Steel Tube

Minimum Order Quantity : negotiable Price : 25000-100000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : ERAUM
Certification : ISO 9001 & PED Model Number : MTSCONAT12

Detail Information

Material: Alloy 601 / UNS N06601 , Alloy Steel Etc Type: Seamless
Technology: Cold Drawn / Cold Rolled Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test Inspection: 100%

Product Description

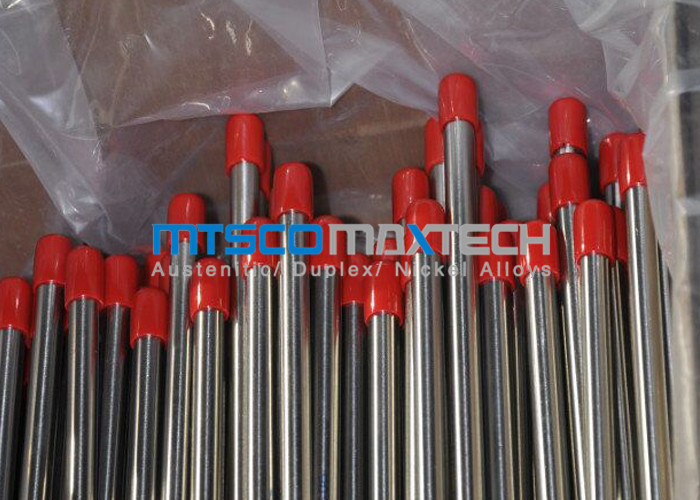

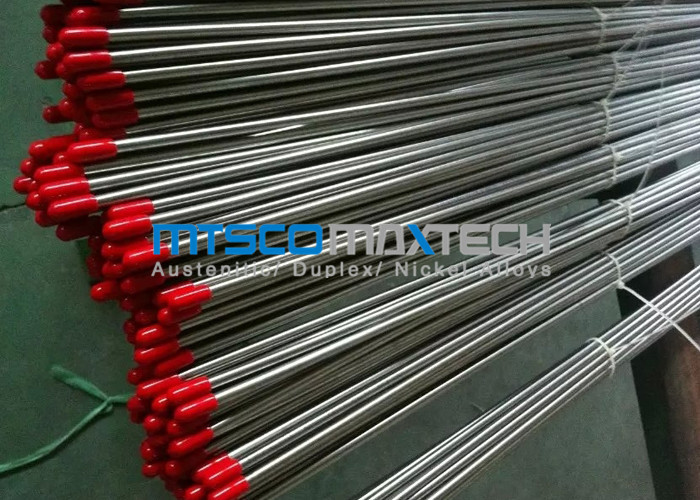

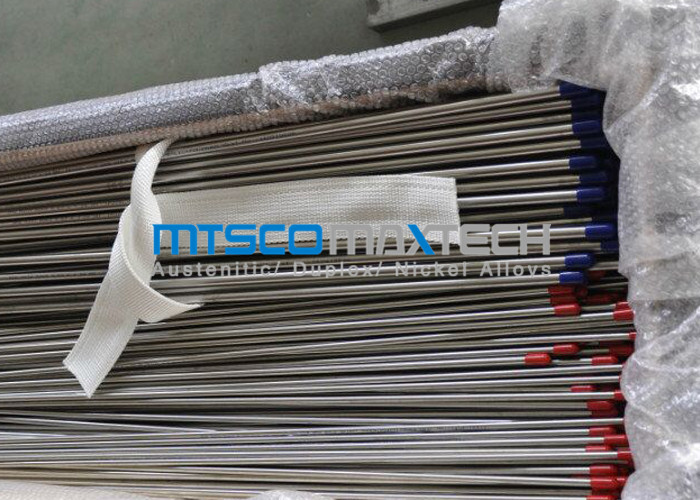

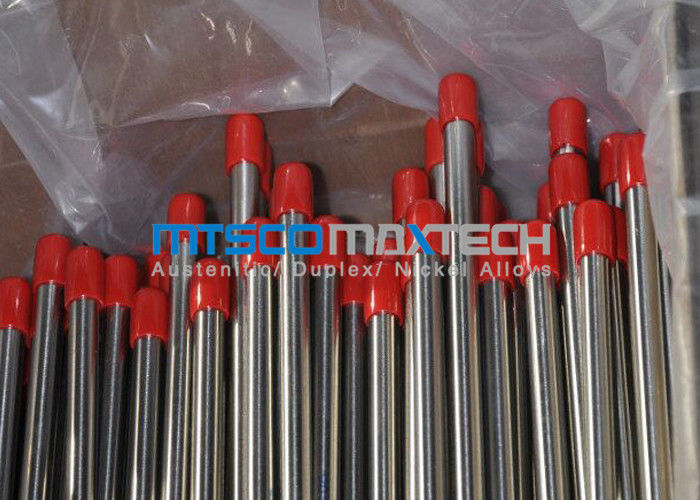

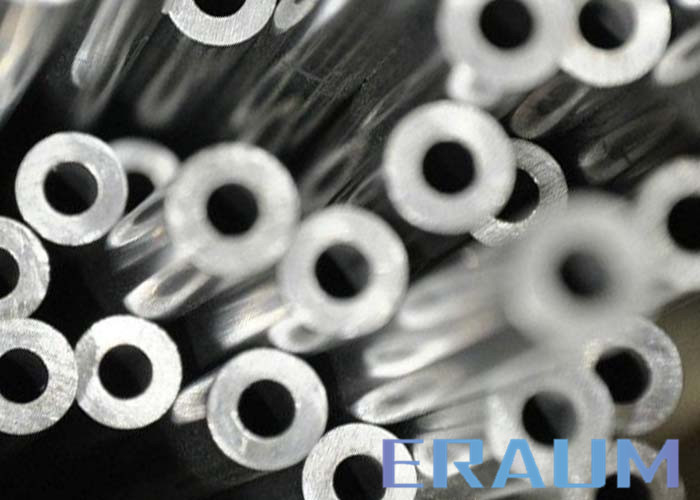

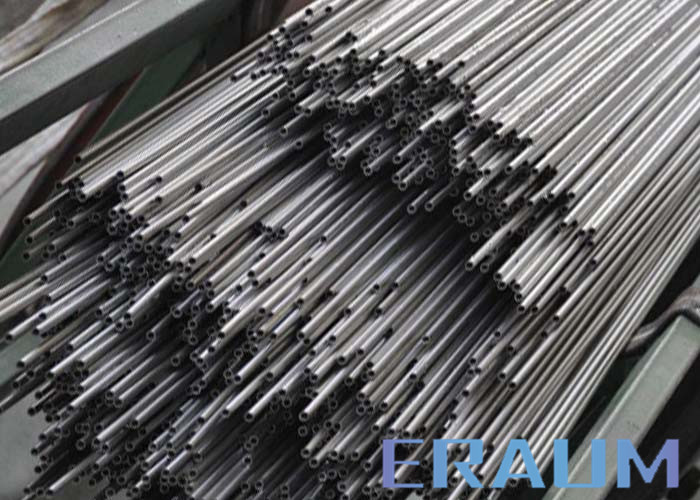

Alloy 601 / UNS N06601 Nickel Alloy Tube 26.67 x 2.87 x 1200 mm , Alloy Steel Tube



1. Grade : UNS N06625 ,  N06600 ,N06601 ,  N07718 ,  N10276 ,  N08800 , N08825 , N04400 ; etc

2 . OD ( Outer Diameter ) : 3.18mm to 101.6mm

3 . WT ( Wall Thickness ) : 0.5mm to 20mm

4 . Length : As customer's requirement

5 . Standard : ASTM B163; ASTM B167; ASTM B444; ASTM B622 etc

6 . Technology : Cold Drawn / Cold Rolled



Test :



1 . NTD(Ultrasonic test, Eddy Current test)

2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

3 . Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

4 . Chemical Analysis(Photoelectric Emission Spectroscopic)



   MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly, nickel alloy tubes which produced by us always have correct OD and WT tolerance . Nickel alloy tubes have a very important position in thermocouple & cable industry .

   Main market or alloy tube include Europe , Middle East , Southeast Asia , South America , etc . MTSCO has bright annealing alloy tube and pickling alloy tube . Compared these two kinds of tubes , bright annealed alloy tubes are more popular in the market . Because it has bright out and inner surface .



Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91



Alloy 601 / UNS N06601 Nickel Alloy Tube 26.67 x 2.87 x 1200 mm , Alloy Steel Tube
