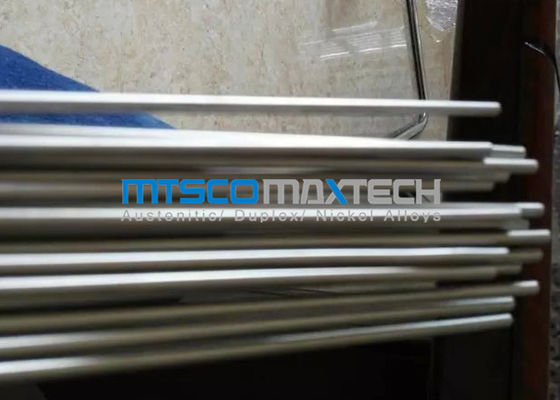

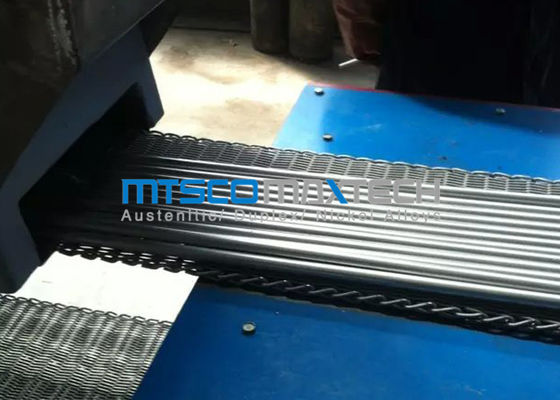

EN10216-5 TC1 D4 / T3 Stainless Steel Instrument Tubing Food Grade

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOSSIT14

Detail Information

Material: 300 Stainless Steel Series NDT: Eddy Current Or Hydraulic Test
Standard: ASTM A269 ; ASTM A213 ; ASTM A312 ; EN10216-5 Etc Technology: Cold Drawn
Delivery Condition: Soft / Hard Inspection: 100%
High Light:

instrument piping

,

Cold Drawn Tubing

Product Description

ASTM A269 / A213 / A312 / EN10216-5 TC1 D4 / T3 Stainless Steel Instrument Tubing , Annealing Tubing , Cold Drawn Tubing






Applications :

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) Etc


Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item FOB , CFR , CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time  30 working days after received your deposit ( Normally according to the order quantity )
Package Iron case ; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Test NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )



EN10216-5 Standard :



Steel Grade Tensile Properties At Room Temperature
Steel Name Steel Number Proof Strength Tensile Strength Elongation Amin (%)
Rp0,2 min Rp1,0 min Rm
Mpa Mpa Mpa l t
X2CrNi19-11 1.4306 180 215 460 to 680 40 35
X5CrNi18-10 1.4301 195 230 500 to 700 40 35
X6CrNiTi18-10 1.4541 200 235 500 to 730 35 30
X6CrNiNb18-10 1.4550 205 240 510 to 740 35 30
X2CrNiMo17-12-2 1.4404 190 225 490 to 690 40 30
X5CrNiMo17-12-2 1.4401 205 240 510 to 710 40 30
X6CrNiMoTi17-12-2 1.4571 210 245 500 to 730 35 30



ASTM A213 / A213M Standard :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



EN10216-5 TC1 D4 / T3 Stainless Steel Instrument Tubing Food Grade 0





MTSCO instrument products are made with high quality raw material. Advanced manufacture equipments and the exquisite craft, technology, characteristic of high precise size, good quality surface, stable performace, especially for the reliable durable performance under high temperature. It is widely applied in heat exchanger and condenser tubes, gas spring and lifter tubes, shock absorber tubes, automobile motocycle tubes, hydraulic tube.High pressure and super critical pressure steam boiler and so on.
