TP304 , TP316 Precision Stainless Steel Tubing

Minimum Order Quantity : negotiable Price : 6000-12000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCOPSST08

Detail Information

Material: Stainless Steel TP304 TP316 End Cut: Plain End ( PE ) / Bevel End ( BE )
Delivery Condition: Soft / Hard NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Surface: Annealing
High Light:

Stainless Steel Precision Tubing

,

seamless stainless steel tubing

Product Description

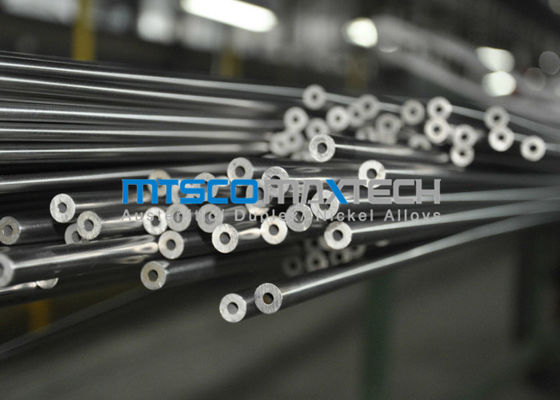

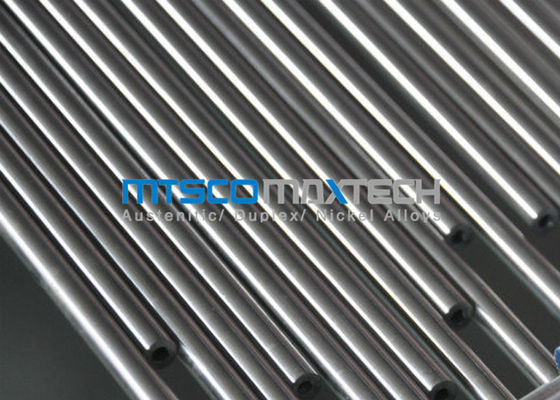

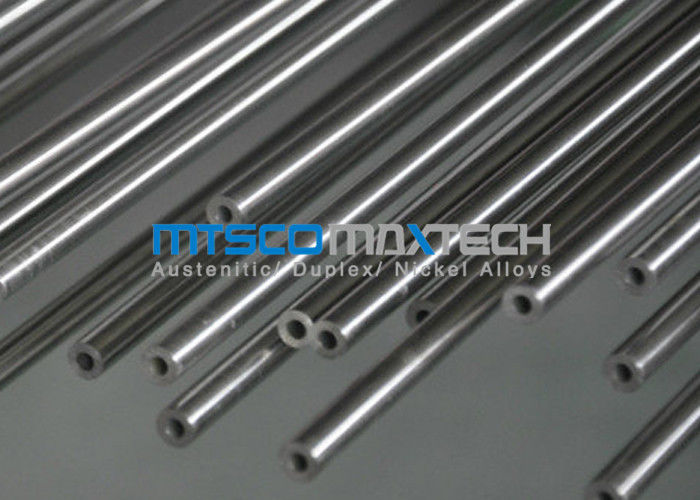

TP304 , TP316 Precision Stainless Steel Tubing , Mesh Belt Furnace Annealing

   MTSCO as the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .



Applications :
1) . Petroleum , Chemical enterprise , Superheater of boiler , Heat exchanger
2) . High temperature resistant transmission fluid pipe in power station
3) . Ship with pressure pipe
4) . The exhaust purification device
5) . Construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms
6) . Equipment and Medical devices


ASTM A213 / A213M Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A


Test :

1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )

Main Market :

MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .
