Alloy 400/600 Nickel Alloy U Bend Heat Exchanger Tube Annealed Surface
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 3700-9000USD/TON |
|---|---|---|---|
| Packaging Details : | Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED | Model Number: | MTSCOHET05 |
|
Detail Information |
|||
| Material: | Stainless Steel / Duplex Steel | Type: | Seamless |
|---|---|---|---|
| U Bent Part Surface: | Not Annealing | Delivery Condition: | Soft / Hard |
| NDT: | Eddy Current Or Hydraulic Test | Inspection: | 100% |
| High Light: | heat transfer tube,heat exchanger pipe |
||
Product Description

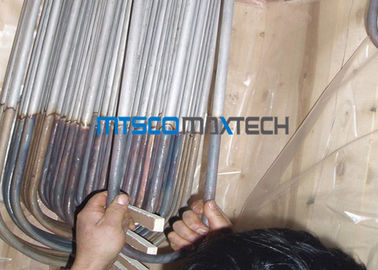

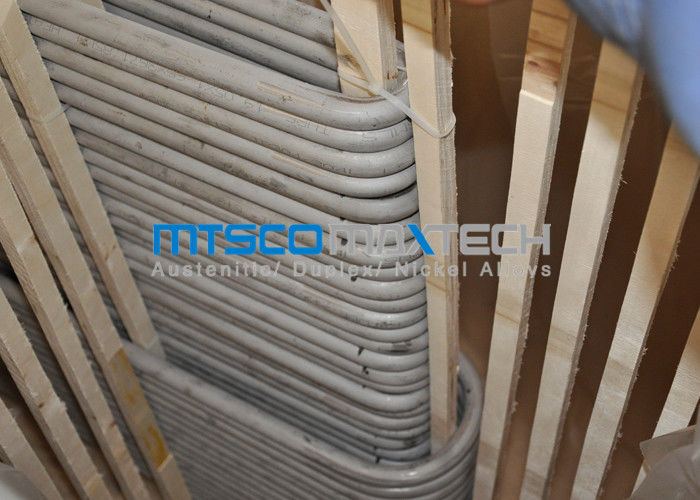

20 * 2 mm EN10216-5 TC1 U Bend Seamless Heat Exchanger Tube For Boiler And Heat Exchanger
MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
| Process : |
| 1 . We use Cold Drawn techonology to produce U bend tube |
| 2 . U bend tubes produce will accordance to customer's drawings |
| 3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate |
| 4 . The radius is checked for its OD and wall thinning with the recommended specification |
| 5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test |
| 6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test |
| 7 . Each tube is then hydro tested at the recommended pressure to check for leakage |
|
Application : |
a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger |
|
b) High temperature-resistant transmission fluid pipe in power station |
|
|
c) Ship with pressure pipe |
|
|
d) Exhaust purification device |
|
|
e) Construction and ornament |
|
|
f) solar industry , military , semiconductor etc |
