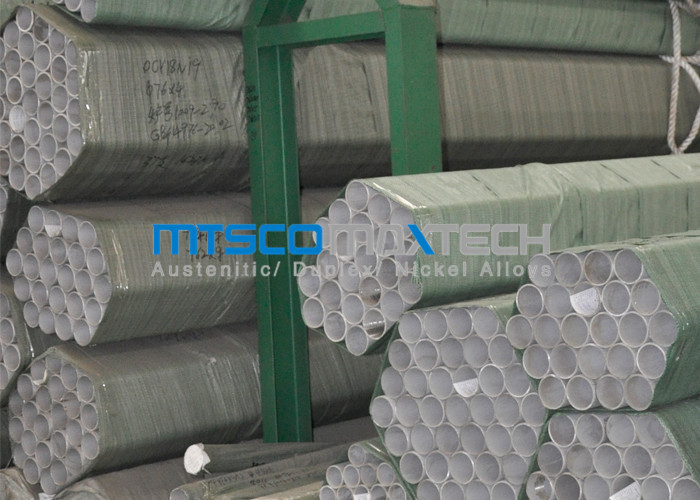

EN10216-5 TC 1 D4 / T3 Stainless Steel Seamless Pipe

Minimum Order Quantity : negotiable Price : 2900-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED Model Number : MTSCOSSSP14

Detail Information

Material: 300 Series , 316Ti , 317L , 347 , 321 Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%
Material: 300 Series , 316Ti , 317L , 347 , 321 Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test End Cut: Plain End ( PE ) / Bevel End ( BE )
Type: Seamless Inspection: 100%

Product Description

ASTM A269 / A213 / A312 / EN10216-5 TC 1 D4 / T3 Stainless Steel Seamless Pipe , Annealing Pipe , Cold Drawn Pipe

   MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the  tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .



Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc



Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91



EN10216-5 Standard Chemical Composition :



Steel Grade C Si Mn P S N Cr Cu Mo Nb Ni Ti Others
max     max max
Steel Name Steel Number
X2CrNi19-11 1.4306 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 18.00 - 20.00 - - - 8.00 - 10.00 - -
X5CrNi18-10 1.4301 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.50 - - - 8.00 - 10.50 - -
X6CrNiTi18-10 1.4541 0.08 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.00 - - - 9.00 - 12.00 5xC to 0.70 -
X6CrNiNb18-10 1.4550 0.08 ≤1 ≤2 0.04 0.015 - 17.00 - 19.00 - - 10xC to 1.00 9.00 - 12.00 - -
X2CrNiMo17-12-2 1.4404 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X5CrNiMo17-12-2 1.4401 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X6CrNiMoTi17-12-2 1.4571 0.08 ≤1 ≤2 0.04 0.015 - 16.50 - 18.50 - 2.00 - 2.50 - 10.50 - 13.50 5xC to 0.70 -



ASTM A213 / A213M Standard Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



EN10216-5 TC 1 D4 / T3 Stainless Steel Seamless Pipe
