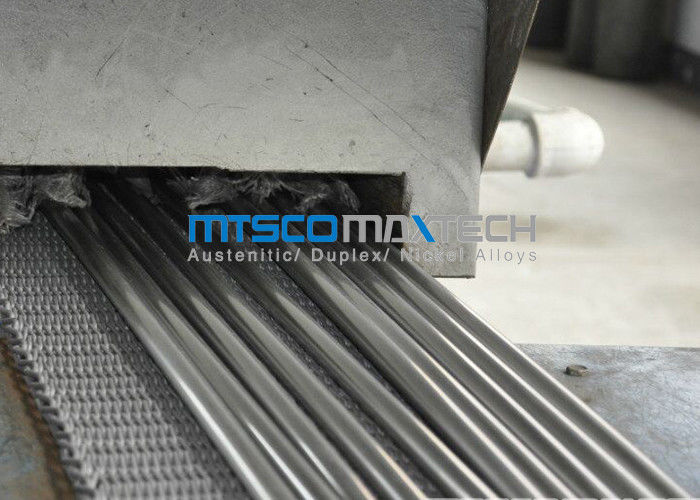

C276 UNS N10276 Material Nickel Alloy Tube Annealed Pickling For Heat Exchanger
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
Minimum Order Quantity : | negotiable | Price : | 25000-100000USD/TON |
---|---|---|---|
Packaging Details : | Plywood Case | Delivery Time : | 30 Days |
Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
Place of Origin: | CHINA | Brand Name: | MTSCO |
---|---|---|---|
Certification: | ISO 9001 & PED | Model Number: | MTSCONAT09 |
Detail Information |
|||
Material: | Inc600 , Inc601 , Inc625 , 800 , 825 Etc | Type: | Seamless |
---|---|---|---|
Technology: | Cold Drawn / Cold Rolled | Delivery Condition: | Soft / Hard |
NDT: | Eddy Current Or Hydraulic Test | Inspection: | 100% |
Highlight: | nickel alloy pipe,Alloy Steel Tube |
Product Description
ASTM B829 / ASME SB829 Nickel Alloy Tube , Inc600 , Inc601 , Inc625 , 800 , 825
1. Grade : UNS N06625 , N06600 ,N06601 , N07718 , N10276 , N08800 ,N08825 , N04400 ; etc
2 . OD ( Outer Diameter ) : 3.18mm to 101.6mm
3 . WT ( Wall Thickness ) : 0.5mm to 20mm
4 . Length : As customer's requirement
5 . Standard : ASTM B163; ASTM B167; ASTM B444; ASTM B622 etc
6 . Technology : Cold Drawn / Cold Rolled
Test :
1 . NTD(Ultrasonic test, Eddy Current test)
2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)
3 . Metal Test(Metallographic Analysis, Impact Test-High/low temperature)
4 . Chemical Analysis(Photoelectric Emission Spectroscopic)
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly, nickel alloy tubes which produced by us always have correct OD and WT tolerance . Nickel alloy tubes have a very important position in thermocouple & cable industry .
Main market or alloy tube include Europe , Middle East , Southeast Asia , South America , etc . MTSCO has bright annealing alloy tube and pickling alloy tube . Compared these two kinds of tubes , bright annealed alloy tubes are more popular in the market . Because it has bright out and inner surface .
ASTM B829 / ASME SB829 Specifications :
NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
in. | mm | Schedule 5S | Schedule 10S | Schedule 4S | Schedule 80S | |||||
in. | mm | in. | mm | in. | mm | in. | mm | |||
1 / 8 | 0.405 | 10.29 | … | … | 0.049 | 1.24 | 0.068 | 1.73 | 0.095 | 2.41 |
1 / 4 | 0.54 | 13.72 | … | … | 0.065 | 1.65 | 0.088 | 2.24 | 0.119 | 3.02 |
3 / 8 | 0.675 | 17.15 | … | … | 0.065 | 1.65 | 0.091 | 2.31 | 0.126 | 3.2 |
1 / 2 | 0.84 | 21.34 | 0.065 | 1.65 | 0.083 | 2.11 | 0.109 | 2.77 | 0.147 | 3.73 |
3 / 4 | 1.05 | 26.67 | 0.065 | 1.65 | 0.083 | 2.11 | 0.113 | 2.87 | 0.154 | 3.91 |
1 | 1.315 | 33.4 | 0.065 | 1.65 | 0.109 | 2.77 | 0.133 | 3.38 | 0.179 | 4.55 |
1 1 / 4 | 1.66 | 42.16 | 0.065 | 1.65 | 0.109 | 2.77 | 0.14 | 3.56 | 0.191 | 4.85 |
1 1 / 2 | 1.9 | 48.26 | 0.065 | 1.65 | 0.109 | 2.77 | 0.145 | 3.68 | 0.2 | 5.08 |
2 | 2.375 | 60.33 | 0.065 | 1.65 | 0.109 | 2.77 | 0.154 | 3.91 | 0.218 | 5.54 |
2 1 / 2 | 2.875 | 73.03 | 0.083 | 2.11 | 0.12 | 3.05 | 0.203 | 5.16 | 0.276 | 7.01 |
3 | 3.5 | 88.9 | 0.083 | 2.11 | 0.12 | 3.05 | 0.216 | 5.49 | 0.3 | 7.62 |
3 1 / 2 | 4 | 101.6 | 0.083 | 2.11 | 0.12 | 3.05 | 0.226 | 5.74 | 0.318 | 8.08 |
4 | 4.5 | 114.3 | 0.083 | 2.11 | 0.12 | 3.05 | 0.237 | 6.02 | 0.337 | 8.56 |
5 | 5.563 | 141.3 | 0.109 | 2.77 | 0.134 | 3.4 | 0.258 | 6.55 | 0.375 | 9.52 |
6 | 6.625 | 168.28 | 0.109 | 2.77 | 0.134 | 3.4 | 0.28 | 7.11 | 0.432 | 10.97 |
8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.5 | 12.7 |
10 | 10.75 | 273.05 | 0.134 | 3.4 | 0.165 | 4.19 | 0.365 | 9.27 | 0.5 | 12.7 |
12 | 12.75 | 323.85 | 0.156 | 3.96 | 0.18 | 4.57 | 0.375 | 9.52 | 0.5 | 12.7 |
14 | 14 | 355.6 | 0.156 | 3.96 | 0.188 | 4.78 | … | … | … | … |
16 | 16 | 406.4 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
18 | 18 | 457.2 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
20 | 20 | 508 | 0.188 | 4.78 | 0.218 | 5.54 | … | … | … | … |
22 | 22 | 558.8 | 0.188 | 4.78 | 0.218 | 5.54 | … | … | … | … |
24 | 24 | 609.6 | 0.218 | 5.54 | 0.25 | 6.35 | … | … | … | … |
30 | 30 | 762 | 0.25 | 6.35 | 0.312 | 7.92 | … | … | … | … |
