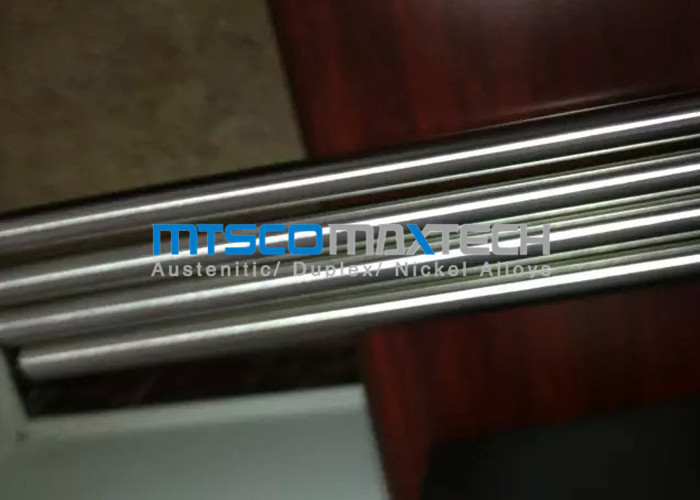

ASTM B444 / ASME SB444 Nickel Alloy Tube

Minimum Order Quantity : negotiable Price : 25000-100000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED Model Number: MTSCONAT08

Detail Information

Material: Inconel 625 , Alloy 625 , Nickel 625 Etc Type: Seamless
Technology: Cold Drawn Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
High Light:

nickel alloy tubing

,

Alloy Steel Tube

Product Description

ASTM B444 / ASME SB444 Nickel Alloy Tube , Alloy 625 , Alloy 625 , Nickel 625



1. Grade : UNS N06625 , N06600 , N06601 ,N07718 , N10276 , N08800 , N08825 , N04400 ; etc

2 . OD ( Outer Diameter ) : 3.18mm to 101.6mm

3 . WT ( Wall Thickness ) : 0.5mm to 20mm

4 . Length : As customer's requirement

5 . Standard : ASTM B163; ASTM B167; ASTM B444; ASTM B622 etc

6 . Technology : Cold Drawn / Cold Rolled



Test :



1 . NTD(Ultrasonic test, Eddy Current test)

2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

3 . Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

4 . Chemical Analysis(Photoelectric Emission Spectroscopic)



   MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and pipes , nickel alloy tubes and pipes etc .



MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly, nickel alloy tubes which produced by us always have correct OD and WT tolerance . Nickel alloy tubes have a very important position in thermocouple & cable industry .

   Main market or alloy tube include Europe , Middle East , Southeast Asia , South America , etc . MTSCO has bright annealing alloy tube and pickling alloy tube . Compared these two kinds of tubes , bright annealed alloy tubes are more popular in the market . Because it has bright out and inner surface .



ASTM B444 Standard
UNS N06625 Elements
Nickel : 58.0 min
Chromium : 20.0 min 23.0 max
Manganese : 0.5 max
Molybdenum : 8.0 min 10.0 max
Cobalt ( If Determined ) : 1.0 max
Aluminum : 0.40 max
Carbon : 0.10 max
Copper : …
Silicon : 0.5 max
Titanium : 0.40 max
Columbium : …
Columbium + Tantalum : 3.15 min 4.15 max
Sulfur : 0.015 max
Phosphorus : 0.015 max





Features: Alloy 625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Alloy 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.

Applications: Chemical process industry and sea water application. Alloy 625 is used in short term applications at temperatures up to 816℃. For long term service, it is best restricted to a maximum of 593℃, because long term exposure above 593℃ will result in significant embrittlement.
