100 % PMI Testing Customized Bright Annealed Tubes Fixed Length 6000mm

Minimum Order Quantity : negotiable Price : 6000-12000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOBAT18

Detail Information

Material: Stainless Steel / Duplex Steel / Alloy Steel Surface: Bright Annealed
Length: Fixed Length 6000mm Technology: Cold Drawn
Condition: Soft End: PE
High Light:

bright steel tube

,

annealed tubing

Product Description

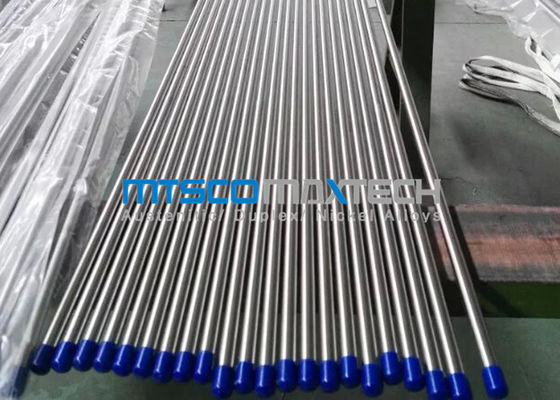

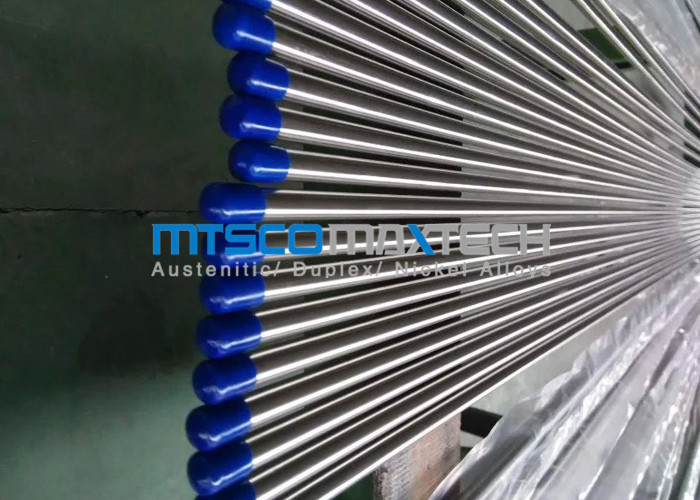

100 % PMI Test Of Customized Bright Annealed Tubes , Small Diameter AW Tubing



   MTSCO has been dedicated to producing bright annealed tubes since 2014 , owning complete producing technology and abundant managing experience . And the raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc . Also we have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on . Welcome you contact us in free !   Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed. And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance. And they are very suitable for chromatography industry.





Advantages:

Production Equipments:
     Cold-Drawing Machine : 70 meters long, make the more close dimension controls.
     Bright Annealed Furnace : Temperature of furnace > 1350℃,  make better mechanical properties.
                                               Closed furnace make pipe surface cleaner, brighter and smoother.

Inspection:
     Complete Inspection Method : All pipes will be done 100% Surface Test, PMI Test, Hydraulic Test , Inner Cleaned, Dimension Test, we aim to offer perfect products.
     Inspection Equipments : Eddy Current &Ultrasonic United Machine
                                           Hydraulic Test Machine
                                           Automatic Pressure Machine

Sizes:



NO. OD W.T NO. OD W.T
MM MM MM MM
1 4.76 0.56 32 15 1
2 4.76 0.71 33 15 1.5
3 4.76 0.89 34 15 2
4 4.76 1.24 35 15.88 0.71
5 5.00 1.00 36 15.88 0.89
6 6.00 1.00 37 15.88 1.24
7 6.00 1.50 38 15.88 1.65
8 6.35 0.71 39 16 1
9 6.35 0.89 40 16 1.5
10 6.35 1.24 41 16 2
11 6.35 1.65 42 18 1
12 8.00 0.71 43 18 1.5
13 8.00 1.00 44 18 2
14 8.00 1.50 45 19.05 0.71
15 9.53 0.71 46 19.05 0.89
16 9.53 0.89 47 19.05 1
17 9.53 1.24 48 19.05 1.24
18 9.53 1.65 49 19.05 1.65
19 10.00 1.00 50 19.05 2.11
20 10.00 1.50 51 20 1
21 10.00 2.00 52 20 1.5
22 12.00 1.00 53 20 2
23 12.00 1.50 54 22 1
24 12.00 2.00 55 22 1.5
25 12.70 0.71 56 22 2
26 12.70 0.89 57 25.4 0.71
27 12.70 1.24 58 25.4 0.89
28 12.70 1.65 59 25.4 1.24
29 14.00 1.00 60 25.4 1.65
30 14.00 1.50 61 25.4 2.11
31 14.00 2.00



100 % PMI Testing Customized Bright Annealed Tubes Fixed Length 6000mm 0
