S31803 / S32205 Small Size 1/2 Inch Duplex Seamless Steel Tube For Chemical
Contact Person : Cherry Gao
Phone Number : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | Price : | 5500-10000USD/TON |
|---|---|---|---|
| Packaging Details : | ron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | Brand Name: | MTSCO |
|---|---|---|---|
| Certification: | ISO 9001 & PED & AD2000 | Model Number: | MTSCODST14 |
|
Detail Information |
|||
| Material: | 2507 | Surface: | Annealing & Polished |
|---|---|---|---|
| Length: | 6000 MM | Tests: | NDT Eddy Current Or Hydraulic Test |
| Delivery Conditions: | Soft / Hard | ||
| High Light: | Cold Drawn Tube,Duplex Stainless Steel tube |
||
Product Description

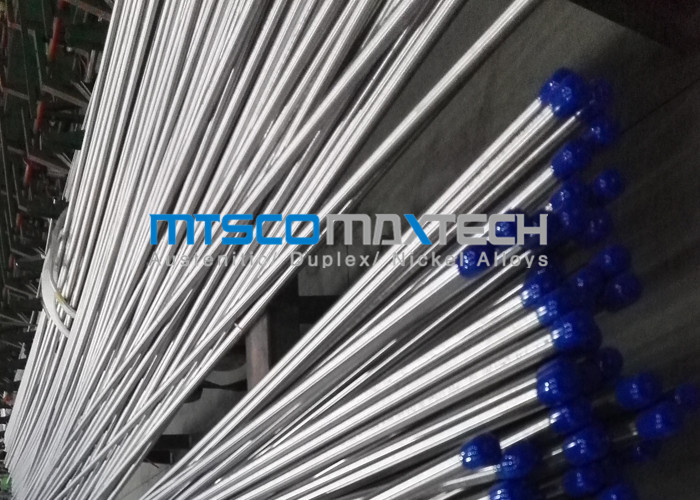

Annealing Super Duplex Steel 2507 tubing Seamless For Heat Exchanger
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
| Physical Properties | |||||||||
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC | / | ||||
| UNS S32750 | 550 | 800 | 15 | 20 | / | ||||
| UNS S31803 | 450 | 620 | 25 | 20 | / | ||||
Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance . Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .
In the near future, duplex steel will be more popular than basic stainless steel material products.
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
Welcome enquiries from all of you! MTSCO is a company who can supply high quality products to you. And we have ISO, PED & AD2000. In the near future, our DNV certificate will coming soon.
