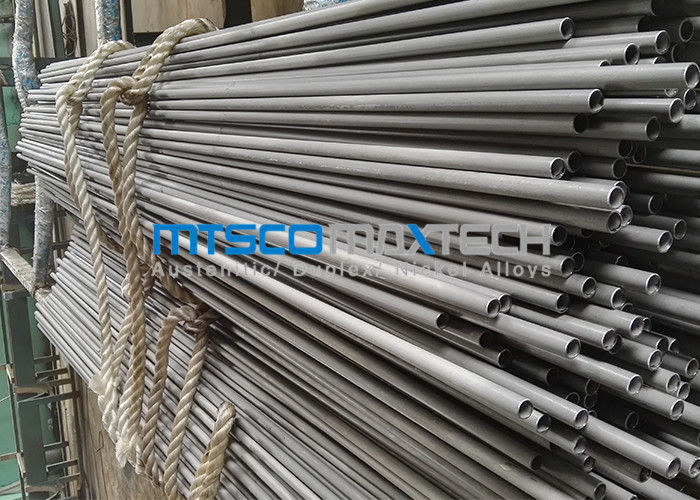

ASTM A269 19.05 * 2.11 Heat Exchanger Tube Seamless Tubing Pickling / Soft Condition

Minimum Order Quantity : negotiable Price : 3700-9000USD/TON
Packaging Details : Plywood Case / Iron Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED & AD2000 Model Number : MTSCOHET15

Detail Information

Material: 300 Series Surface: Pickling
Technology: Cold Drawn Condition: Soft / Hard
Inspection: 100% NDT: Eddy Current Or Hydraulic Test

Product Description

ASTM A269 19.05 * 2.11 Heat Exchanger Tube Seamless Tubing , Pickling And Soft Condition







ASTM A 213 / A 213M ASME SA213 / SA213M Specification for Seamless Ferric and Austenitic Alloy -Steel Boiler , Su[perheater , and Heat-Exchanger Tubes
ASTM A 249 / A 249M Specification for Welded Austenitic Steel Boiler , Superheater , Heat-Exchanger , and Condenser tubes



Application :



Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .



Grade TP 304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H

Standard



ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ; ASTM A789 , etc
Size OD : 25.4mm
WT : 2.11
Length : 12192mm
Advantage Superior surface finish , better mechanical property ; more precise dimension ; perfect inspection method and inspection equipment
Application Boiler tube applies to petroleum , chemical industry , electric power , boiler , high temperature resistant , low temperature resistant , corrosion resistant . The size can be made according to the customers requirements . High pressure boiler pipe applies to container , petrochemical and so on . Note : Generally , high pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650 .
Package Plywood case



Process :

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage



MTSCO heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
