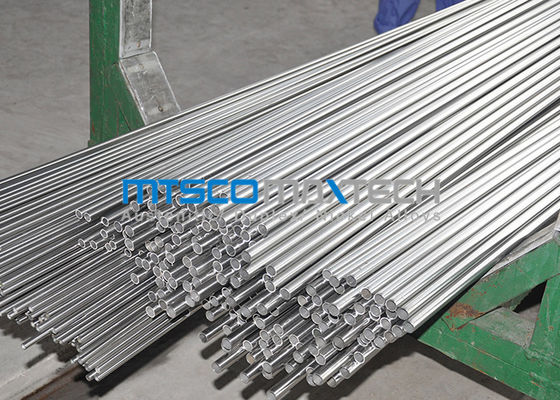

Bright Annealed Surface Stainless Steel Instrument Tubing / Tube American Standard

Minimum Order Quantity : negotiable Price : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSIT18

Detail Information

Material: 300 Series Surface: Bright Annealed
Length: 6096mm Technology: Cold Drawn
Condition: Soft / Hard Standard: America Standards
High Light:

stainless steel instrumentation tubing

,

Cold Drawn Tubing

Product Description

Stainless Steel Instrument Tubing / Tube , Annealing Tube , America Standard



ASTM A213 Standard Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A


Applications :



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler and heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) Etc



EN10216-5 Standard :



Steel Grade Tensile Properties At Room Temperature
Steel Name Steel Number Proof Strength Tensile Strength Elongation Amin (%)
Rp0,2 min Rp1,0 min Rm
Mpa Mpa Mpa l t
X2CrNi19-11 1.4306 180 215 460 to 680 40 35
X5CrNi18-10 1.4301 195 230 500 to 700 40 35
X6CrNiTi18-10 1.4541 200 235 500 to 730 35 30
X6CrNiNb18-10 1.4550 205 240 510 to 740 35 30
X2CrNiMo17-12-2 1.4404 190 225 490 to 690 40 30
X5CrNiMo17-12-2 1.4401 205 240 510 to 710 40 30
X6CrNiMoTi17-12-2 1.4571 210 245 500 to 730 35 30



Bright Annealed Surface Stainless Steel Instrument Tubing / Tube American Standard 0
