ASME SB163 / SB423 Nickel Alloy Seamless Alloy 825 Tubing

Minimum Order Quantity : negotiable Price : 25000-100000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCONAT46

Detail Information

Material: Nickel Alloy Grade: Alloy 825
Standard: ASME SB163 / SB423 Type: Seamless
Technology: Cold Drawn / Cold Rolled Delivery Condition: Soft / Hard
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
High Light:

nickel alloy tubing

,

nickel alloy pipe

Product Description

ASME SB163 / SB423 Nickel Alloy Seamless Alloy 825 Tubing



Alloy 825 Tubing:



Alloy 825 tubing. Apart from nickel being the primary alloying material in the Inconel 825 Electropolish Tube, the alloy also contains elements such as iron, chromium, titanium, molybdenum and copper.



Incoloy 825 Tubing Material Grade:



1. Grade : UNS N06625 , N06600 , N06601 , N07718 , N10276 , N08800 , N08825 ,N04400 ; etc

2 . OD ( Outer Diameter ) : 3.18mm to 101.60mm

3 . WT ( Wall Thickness ) : 0.50mm to 20.00mm

4 . Length : As customer's requirement

5 . Standard : ASTM B163; ASTM B167; ASTM B444; ASTM B622 etc

6 . Technology : Cold Drawn / Cold Rolled



Alloy 825 Tubing Chemical composition:



% Ni Fe Cr C Mn Si S Mo Cu Ti Al
min 38.0 22.0 19.5 - - - - 2.5 1.5 0.60 -
max 46.0 - 23.5 0.05 1.00 0.50 0.030 3.5 3.0 1.20 0.20


Incoloy 825 Tubing  Physical properties:



Density 8.14 g/cm3
Melting range 1370-1400℃

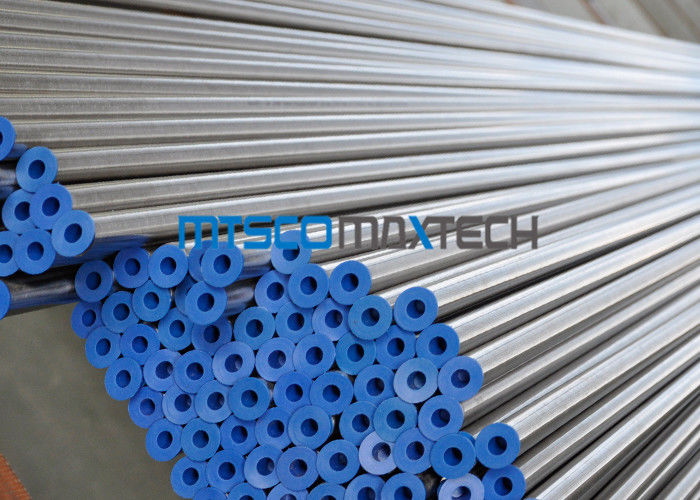

ASME SB163 / SB423 Nickel Alloy Seamless Alloy 825 Tubing 0





Features: Alloy 825 has excellent resistance to chloride-ion-induced stress corrosion cracking, reducing environments containing phosphoric and sulfuric acids, oxidizing environments containing nitric acid and nitrates, and pitting, crevice corrosion and intergranular corrosion. It has good mechanical properties at cryogenic temperatures to moderately high temperatures up to 538℃.



Applications: Chemical process industry, acid production, pickling equipment, pollution control equipment.



Alloy 825 Tubing Test :



1 . NTD(Ultrasonic test, Eddy Current test)

2 . Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

3 . Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

4 . Chemical Analysis(Photoelectric Emission Spectroscopic)



ASME SB163 / SB423 Nickel Alloy Seamless Alloy 825 Tubing 1
