Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe

Minimum Order Quantity : negotiable Price : 25000-100000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: ERAUM
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCONAT51

Detail Information

Material: Nickel Alloy Grade: Alloy 625,Alloy 617
Type: Bright Annealed Pipe Outer Diameter: 10.3-426mm
Surface: Bright Annealed Technology: Cold Drawn / Cold Rolled
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
High Light:

nickel alloy tubing

,

nickel alloy pipe

Product Description

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe



Nickel Alloy Pipe:



inc625 is an alloy grade with a density of 8.4 g/cm3, a melting point of 1290-1350°C, excellent resistance to inorganic acid corrosion, and excellent corrosion resistance to various corrosive media in oxidizing and reducing environments.



Inc617 is an alloy with excellent corrosion resistance in hot corrosive areas such as sulphidation environments, especially in oxidation and carbonization environments with cycling up to 1100°C. This corrosion resistance combined with excellent mechanical properties makes this alloy particularly suitable for high temperature applications.



Nickel Alloy Pipe Chemical composition:



% Ni Cr Mo Fe C Mn Si P S Co Nb+Ta Al Ti
min 58.0 20.0 8.0 - - - - - - - 3.15 - -
max - 23.0 10.0 5.0 0.10 0.50 0.50 0.015 0.015 1.00 4.15 0.40 0.40



Nickel Alloy Pipe Metallurgical structure:


625 is face-centered cubic lattice structure. Dissolve out the carbon granule and instability quaternary phase, then change it to stability Ni3 (Nb,Ti) trimetric lattice around 650℃ after a long time heat preservation. nickel-chromium content will strength the mechanical performance in the state solution while suppress the plasticity.

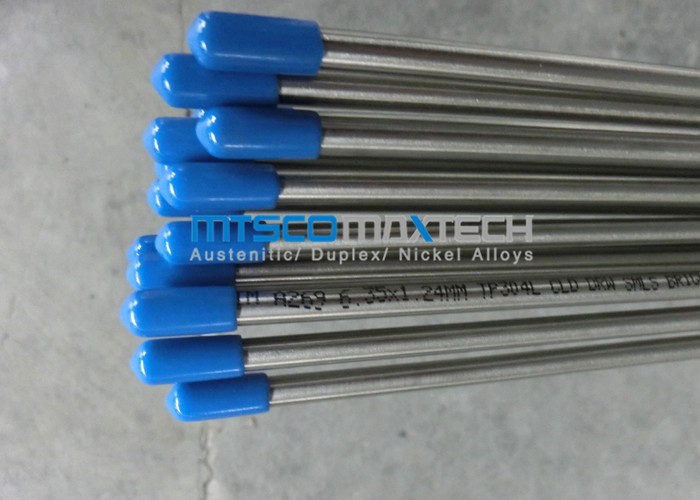

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 0



Nickel Alloy Pipe Basic Information:



Terms & Conditions Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time 30 working days after received your deposit (Normally according to the order quantity)
Package Iron case; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Quality Test NTD(Ultrasonic test, Eddy Current test)
Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)
Metal Test(Metallographic Analysis, Impact Test-High/low temperature)
Chemical Analysis(Photoelectric Emission Spectroscopic)
Market Main Market Europe, Middle East, Southeast Asia, South America. etc




Nickel Alloy Pipe Typical application field as below:

1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3.Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling

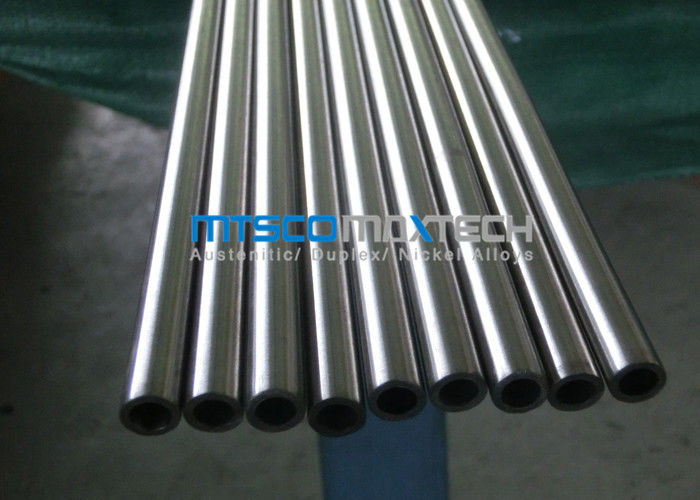

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 1



Who MTSCO is?



MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.

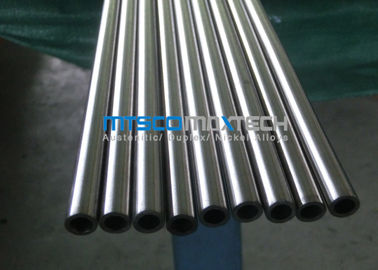

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 2



What products can MTSCO provide?

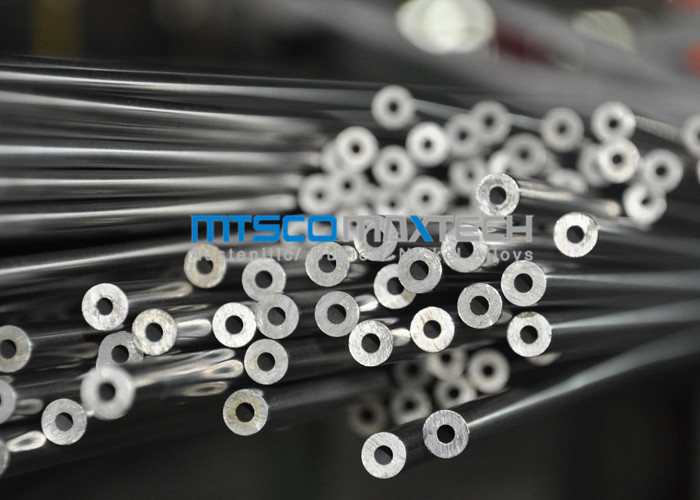

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 3

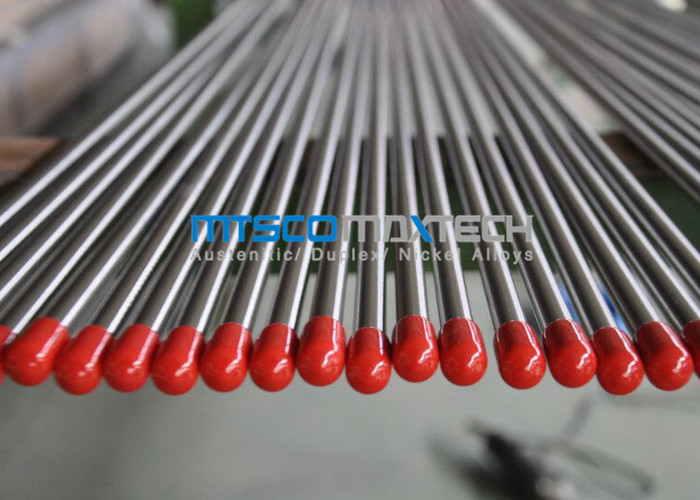

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 4



What materials can MTSCO provide?



Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200



How can MTSCO service customers?



MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.

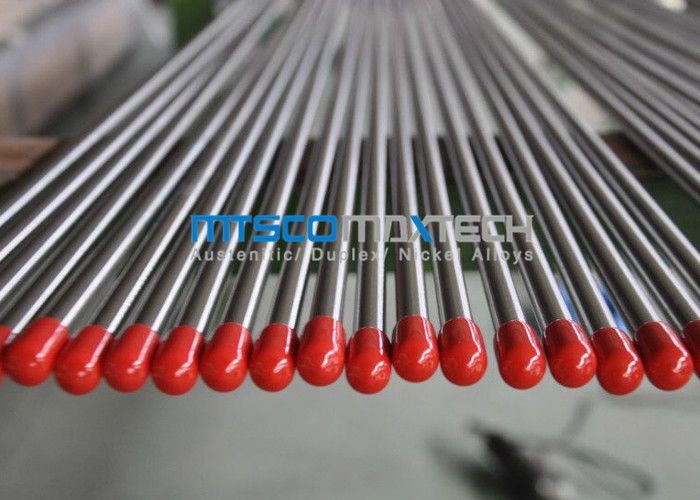

Bright Annealed ASTM B829 Inc 625 / Inc 617 Nickel Alloy Pipe 5



For more information, you are welcome to contact us by email. Thank you for your interest.
