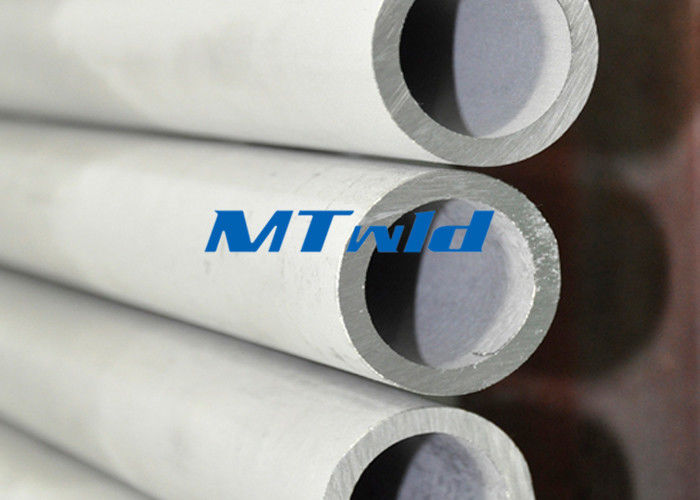

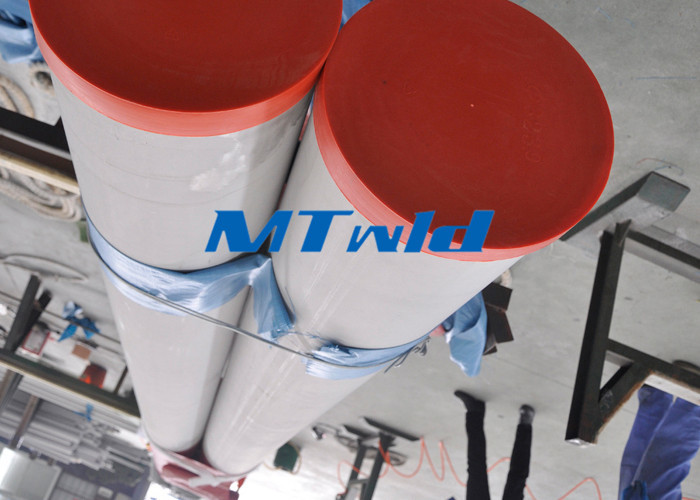

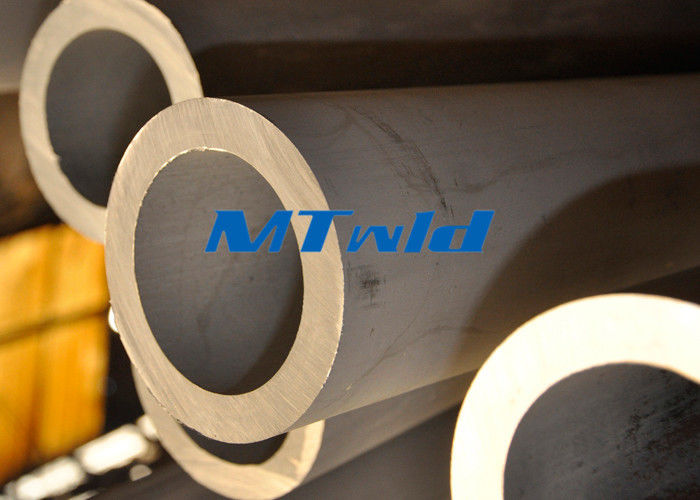

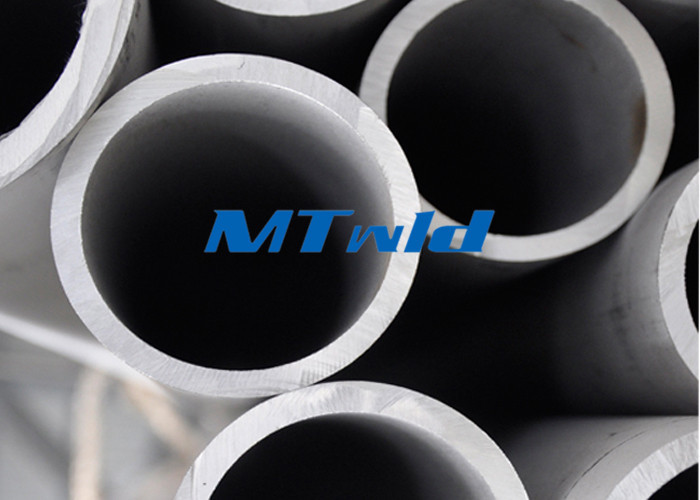

DN150 6 Inch TP 321 / 317 / 347 / 347H Welding Stainless Steel Pipe Annealing

Minimum Order Quantity : negotiable Price : 2400-12000USD/TON
Packaging Details : Plywood Case / Bundles Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin : CHINA Brand Name : MTSCO
Certification : ISO 9001 & PED & AD2000 Model Number : MTSCOSSSP22

Detail Information

Material: TP321 / 317 / 347 / 347H, 300 Series Stainless Steel Type: Welded
NDT: Eddy Current Or Hydraulic Test Inspection: 100%
Surface: Pickling & Annealing Process: ERW , EFW Etc

Product Description

DN150 6 Inch TP321 / 317 / 347 / 347H Stainless Steel Welded Pipe



Specifications :


DNNPS(Inch)D(mm)SCH5SSCH10SSCH40SSTDSCH40SCH80XSSCH80SSCH160XXS
80388.902.113.055.495.495.497.627.627.6211.1315.24
903 1/2101.602.113.055.745.745.748.088.088.08--
1004114.302.113.056.026.026.028.568.568.5613.4917.12
1255141.302.773.406.556.556.559.539.539.5315.8819.05
1506168.302.773.407.117.117.1110.9710.9710.9718.2621.95
2008219.102.773.768.188.188.1812.7012.7012.7023.0122.23
25010273.103.404.199.279.279.2715.0912.7012.7028.5825.40


Standard:

ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe


MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .

DN150 6 Inch TP 321 / 317 / 347 / 347H Welding Stainless Steel Pipe Annealing
