ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed
ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed
Contact Now

ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed

Minimum Order Quantity : negotiable Price : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Brand Name: MTSCO
Certification: ISO 9001 & PED & AD2000 Model Number: MTSCOSSCT19

Detail Information
Product: Multi-core Tubes Standard: ASTM A269 / ASTM A213 Dual Standards Etc
Delivery Condition: Soft / Hard Type: Welded
Surface: Bright Annealed / Pickled Used For: Measuring And Monitoring Systems
High Light:

coiled stainless tube

,

seamless stainless steel pipe

Product Description

ASTM A269 TP316 / 316L Stainless Steel Welded Multi-core Tubing





Where the multi-core coiled tubing used ?



    Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.

nditions.





Ordering code number

Tube size

(O.D x Thickness x Core)

Overall Diameter

(.mm)

Sheath Thickness

(.mm)

Bundle Weight

(kg/M)

Max Pressure

(Bar)
HTD-1 6×1.0×1 8 1.0 0.15

Working:180Bar



Test:270Bar
HTD-2 6×1.0×2 20 2.0 0.60
HTD-3 6×1.0×3 21 2.0 0.75
HTD-4 6×1.0×4 24 2.0 0.82
HTD-5 6×1.0×5 25 2.0 0.90
HTD-6 6×1.0×6 27 2.0 1.04
HTD-7 6×1.0×7 27 2.0 1.15
HTD-8 6×1.0×8 32 2.2 1.40
HTD-9 8×1.0×1 10 1.0 0.28
HTD-10 8×1.0×2 24 1.8 0.89
HTD-11 8×1.0×3 26 2.0 1.12
HTD-12 8×1.0×4 28 2.0 1.33
HTD-13 8×1.0×5 31 2.0 1.67
HTD-14 8×1.0×6 34 2.0 2.00
HTD-15 8×1.0×7 34 2.0 2.15
HTD-16 8×1.0×8 40 2.2 2.60
HTD-17 10×1.0×1 13 1.0 0.34
HTD-18 10×1.0×2 28 1.8 1.18
HTD-19 10×1.0×3 31 2.0 1.60
HTD-20 10×1.0×4 34 2.0 1.97
HTD-21 10×1.0×5 37 2.0 2.20
HTD-22 10×1.0×6 40 2.0 2.40
HTD-23 10×1.0×7 40 2.0 2.52
HTD-24 10×1.0×8 48 2.5 3.20
HTD-25 12×1.0×1 14 1.0 0.41
HTD-26 12×1.0×2 34 2.0 1.35
HTD-27 12×1.0×3 36 2.0 1.96
HTD-28 12×1.0×4 39 2.0 2.37
HTD-29 12×1.0×5 43 2.0 2.70
HTD-30 12×1.0×6 47 2.0 3.00
HTD-31 12×1.0×7 47 2.0 3.14
HTD-32 12×1.0×8 55 2.5 3.90





    The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.

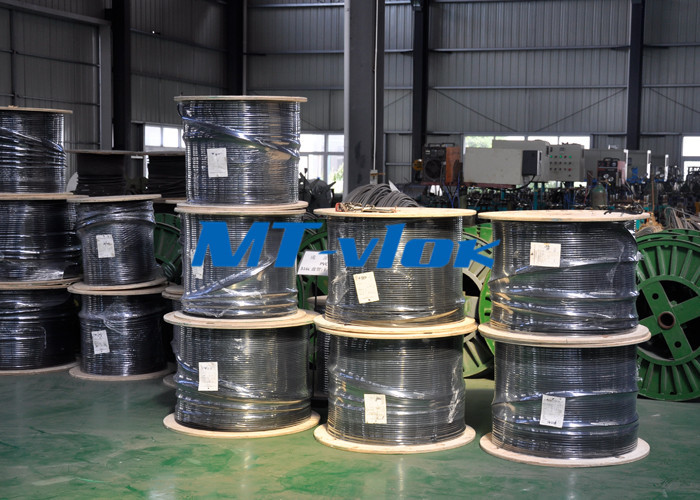

ASTM A269 TP316 / 316L Welded Multi - Core Coiled Stainless Tubing Bright Annealed 0
